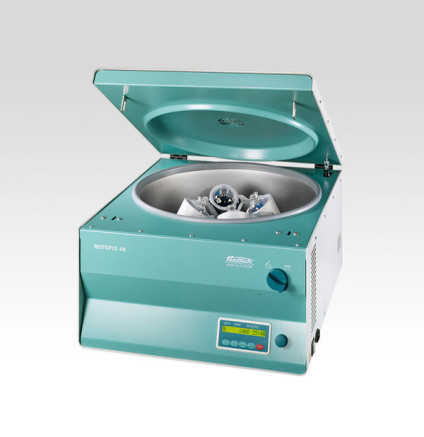

Hettich ROTOFIX 46H Benchtop Centrifuges (4 x 100 ml, 2000rpm, 90 °C)

Application: used in industry, such as: ASTM tests, Quality testing for chrome baths, Production of microfluidic chips
Max. capacity:
+ In a swing-out rotor: 4 x 100 ml
Max. speed: 2000 rpm
Max. RCF: 984
Dimensions (H x W x D): 345 x 538 x 647 mm
Weight: approx 60 kg
Heater: can be heated up to + 90 °C
Frequently used rotors:
+ Angle rotor for 6 x 25 or 50 ml Schlenk tubes (45°), max. RCF 805 – Cat. No. 5616 (Option)
+ Swing-out rotor for 6 x 30 ml chrome bath tubes (90°), max. RCF 917 – Cat. No 4619 (Option)
As their designated purpose is for general laboratory use only, the ROTOFIX 46 and 46 H are no medical products according to the IvD Directive. These centrifuges must, therefore, not be used for medical analyses or diagnostic purposes (clinical chemistry) within the scope of the IvD Directive.
Rotor: Option below

Catalog

	Swing-out rotor, 6-place, for chrome bath tubes Angle: 90° RPM max.: 2,000 min−1 RCF max.: 917 Cat. No. 4619
	Angle rotor, 6 plcae, for Schlenk tubes Angle: 45° RPM max.: 2,000 min−1 RCF max.: 805 Cat. No. 5616
	Swing-out rotor, 4-place, for ASTM tubes Angle: 90° RPM max.: 2,000 min−1 RCF max.: 984 Cat. No. 4474  (without carriers)
