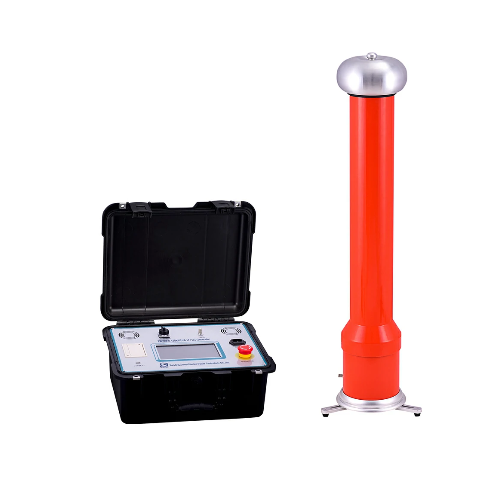

Zhiwei ZWZGFS-120/2 DC Hipot Tester (120kV, 3mA)

Weight （kg）: 10

Volume （mm³）: 565*390*190

Height of cylinder（mm）: 535

Output voltage accuracy: ±(1.0%R±2d)

Output current accuracy: ±(1.0%R±2d)

Ripple coefficient: ≤0.5%

Work mode: Intermittent use, rated load for 30 minutes

Over load capacity: No-load voltage can exceed the rated voltage of 10% to 10 minutes.

                    Maximum charge current of 1.25 times the rated current.

Power: AC220V±10% 50HZ

Working environment: -10℃~40℃

                      Relative humidity： The room temperature is 25 degrees centigrade is not greater than 85% (without dew)

                      Lower than 1500 m

Rated voltage (kV): 120

Rated current (mA): 2

Rated power (W): 240
