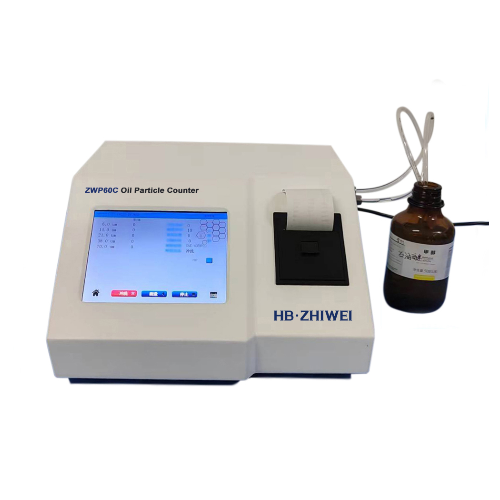

Zhiwei ZWP60C ເຄົາເຕີ້ນໍ້າມັນ (10~100 ml)

Suction connection: Max 10 bar

Pressure Variation: Permissible

Medium: Hydraulic fluids, fuel oil, kerosene , water and other transparent liquids

Viscosity: at low pressure oil suction port Max 68 mm2/s

Temperature range: 0－50℃   Medium    0－80℃

Sensor flow rate: 30 ml/min

Flushing volume flow: 30 ml/min

Measuring Volume: 10~100 ml adjustable

Flushing volume: 0~50 ml  adjustable

Measurable particle size: 1~400m

Sensor: Laser diode sensor

Number of channels: 8

Display according NAS 1638: 5-15/15-25/25-50/50-100/>100µm

NAS classes: 0~12

Display according ISO 4406(1991): >2/>5/>15µm or >4/>6/>14µm

ISO4406 classes: 1~24

Calibration: ACFTD stive (ISO 4402, 5mg/l) ISO MTD stive (ISO 11171, 2.8mg/l)

Power supply: Ac 220V to 24V DC power adapter (standard)

Dimensions: 410*310*155mm

Weight: 7.5 kg
