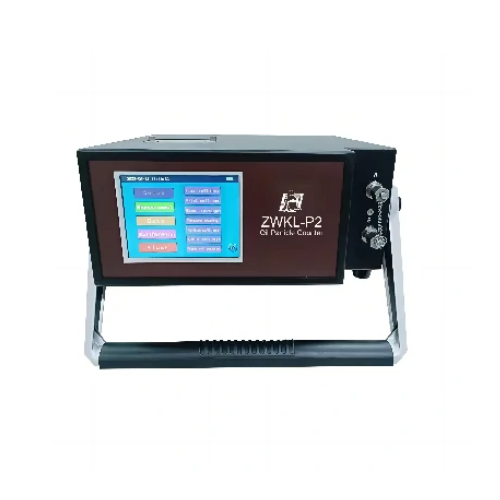

Zhiwei ZWKL-P2 ເຄົາເຕີ້ນໍ້າມັນ (0.8μm~600μm)

Light source: semiconductor laser

Particle size range: 0.8μm~600μm (according to ACFTD calibration 1~100μm or ISO MTD calibration 4~70μm(c) calibration)

Sensitivity: 0.1μm

Custom detection channels: 8~64 channels are optional, and the particle size can be set arbitrarily

Sampling volume: 0.2-6000ml, interval 0.1mL

Sampling accuracy: better than ±1%

Sampling speed: 5-80mL/min

Cleaning speed: 5-80mL/min

Cleaning volume: can be set between 0~90mL

Counting accuracy: the error is less than ±5%

Resolution: ≤10%

Repeatability: RSD＜2%

Limit coincidence error: 12000-40000 grains/mL

Off-line detection viscosity: ≤100cSt (optional pressure chamber if the viscosity is too high))

Pressure range: low pressure 0-0.6Mpa, high pressure up to 42Mpa (optional pressure reducing valve)

Online detection interval time: arbitrary setting

Test sample temperature: 0℃~80℃

Working temperature: -20℃~60℃

Storage temperature: -30℃~80℃

Screen size: 7 inches

Power supply: AC100－240V, 50/60Hz

Battery capacity: 5200mAh

Battery running time: 6-8 hours

Dimensions: 310×305×135mm

Instrument weight: 7.5kg
