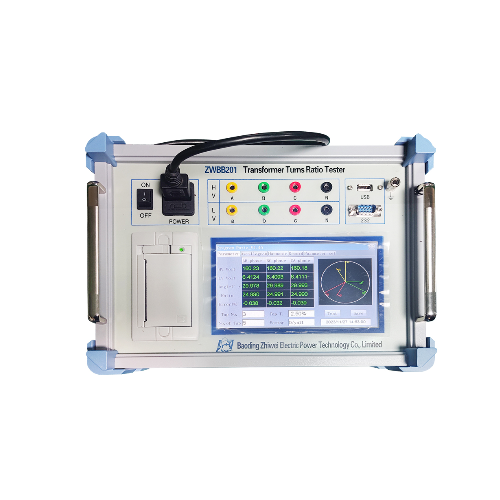

Zhiwei ZWBB201 Transformer Turns Ratio Tester (0.8-50000)

Ratio measurement range: 0.8-50000

Ratio measurement accuracy: 0.1% (0.8-1000), 0.2% (1000-50000)

Output voltage: high-voltage side output AC (12-160V)

Working power supply: AC100-240V±15% (built-in lithium battery power supply needs to be customized by the user)

Working temperature:  -10℃～50℃

Ambient humidity: ≤90%RH

Volume:  320mm×230mm×140mm

Weight: 4.6 kg (not including the test line)
