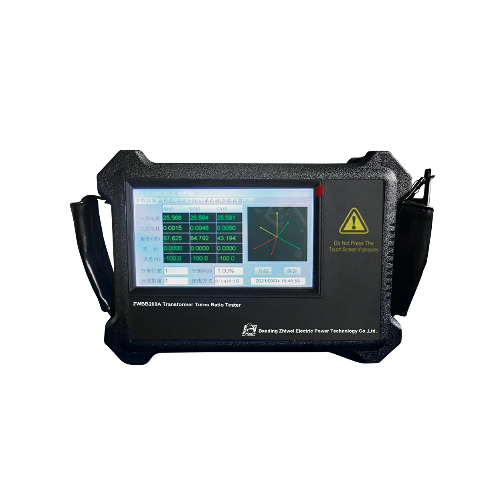

Zhiwei ZWBB200 Transformer Turn Ratio Tester (0.8－50000)

Ratio measurement range: 0.8－50000

Ratio measurement accuracy: 0.1%（0.8-1000），0.2%（1000-50000）

Input voltage: AC 40V on the high voltage side

Working power: AC220V±15%  Optional built-in lithium battery DC9.0V-12.6V, the nominal capacity of the battery is 2600mAH, the battery can work continuously for about 4 hours.

Volume: 270 mm×190 mm×70mm

Weight: 2kg(not including the test line)

Operating temperature: -10℃～50℃

Environmental humidity: ≤90%RH
