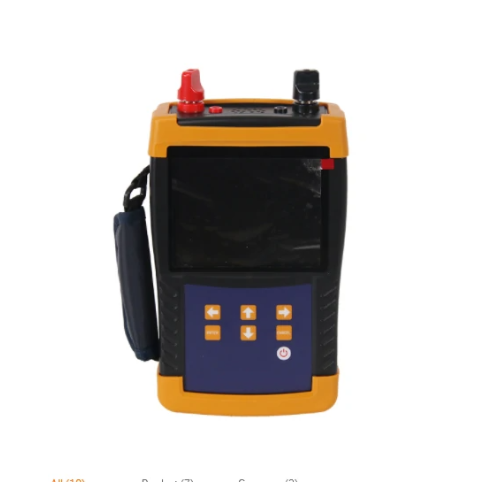

Zhiwei ZW8751S ຕິດຕໍ່ຜູ້ທົດສອບຄວາມຕ້ານທານ (100A, 0~2000µΩ)

Measuring Range

Output Current: 100A、80A、50A、30A

Measuring Range: 100A 0~2000µΩ

                              80A 0~5mΩ

                              50A 0~10mΩ

                             30A 0~20mΩ

Technical Index

Accuracy: ±（Reading×0.5%+1µΩ）

Resolution Ratio: 0.1µΩ

Display Digit: Four and a half

Test Power Supply: Constant current limit voltage，about 2V

Input Voltage: Maximum 5V

Measuring Time: Quick、10~60 seconds optional

Testing Times: More than 600 times（full charge, fast measurement mode）

Test Line: Resistance less than 10mΩ

Conditions Of Use and Shape

working Power Supply: Built-in lithium battery or external charger，Charger input 100~240VAC，50HZ/60HZ

Charging Voltage: 12.6V

Charging Current: ≤3A

Charging Time: Abour 3 hrs

Auto Shut Off: 5 minutes automatic shutdown without operation

Instrument Weight: 1.7kg（exclude test lines）

Instrument Dimension: 246mm（L）×156mm（W）×62mm（H）

Environment Temperature: -10℃~50℃

Relative Humidity: ≤90%，no dew
