HASEGAWA HT-670 with lead wire ເຄື່ອງກວດຈັບແຮງດັນຕໍ່າ (AC 50V〜600V; DC 50V〜600V)

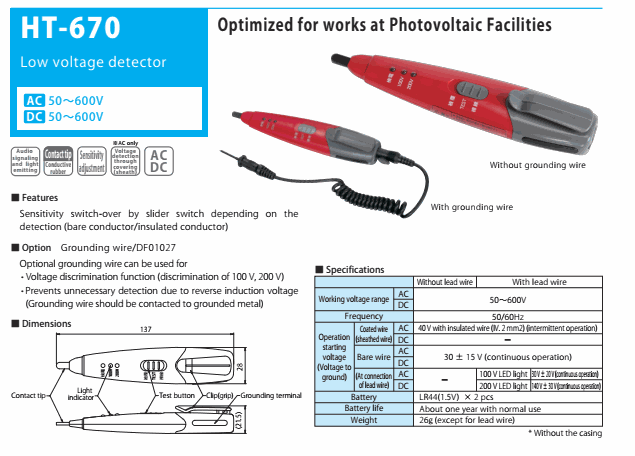

Specifications

Working voltage range:

AC 50V〜600V

DC 50V〜600V

Frequency: 50/60Hz

Operation starting voltage (Voltage to ground):

-Coated wire (sheathed wire):

AC: 40 V with insulated wire (IV. 2 mm2) (intermittent operation)

DC: /

-Bare wire: 30 ± 15 V (continuous operation)

-At connection of lead wire:

AC: 100 V LED light: 30 V ± 20 V (continuous operation)

DC: 200 V LED light: 140 V ± 30 V (continuous operation

Battery: LR44(1.5V) × 2 pcs

Battery life: About one year with normal use

Weight: 26g (except for lead wire)

* Without the casing

Features

Sensitivity switch-over by slider switch depending on the detection (bare conductor/insulated conductor)

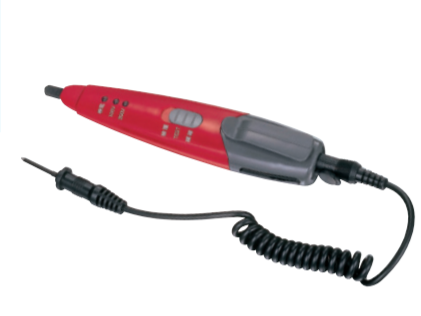

Grounding wire/DF01027

Optional grounding wire can be used for

• Voltage discrimination function (discrimination of 100 V, 200 V)

• Prevents unnecessary detection due to reverse induction voltage (Grounding wire should be contacted to grounded metal)
