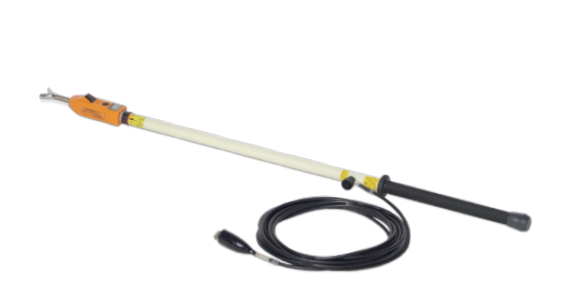

HASEGAWA HST-20N ເຄື່ອງກວດຈັບແຮງດັນປານກາງ (3kV～25kV)

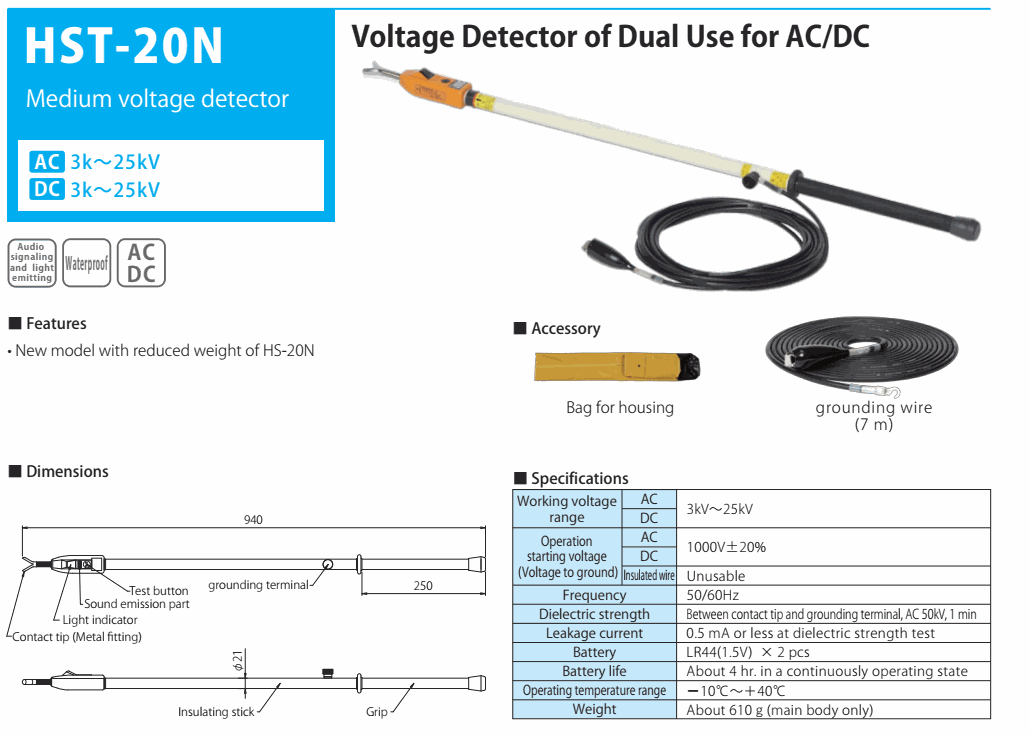

■ Specifications:

Working voltage range: AC/DC: 3kV～25kV

Operation starting voltage (Voltage to ground):

AC/DC: 1000V±20%

Insulated wire: Unusable

Frequency: 50/60Hz

Dielectric strength: Between contact tip and grounding terminal, AC 50kV, 1 min

Leakage current: 0.5 mA or less at dielectric strength test

Battery: LR44(1.5V) × 2 pcs

Battery life: About 4 hr. in a continuously operating state

Operating temperature range: －10℃～＋40℃

Weight: About 610 g (main body only)

■ Accessory: Bag for housing, grounding wire (7 m)

■ Features:

• New model with reduced weight of HS-20N
