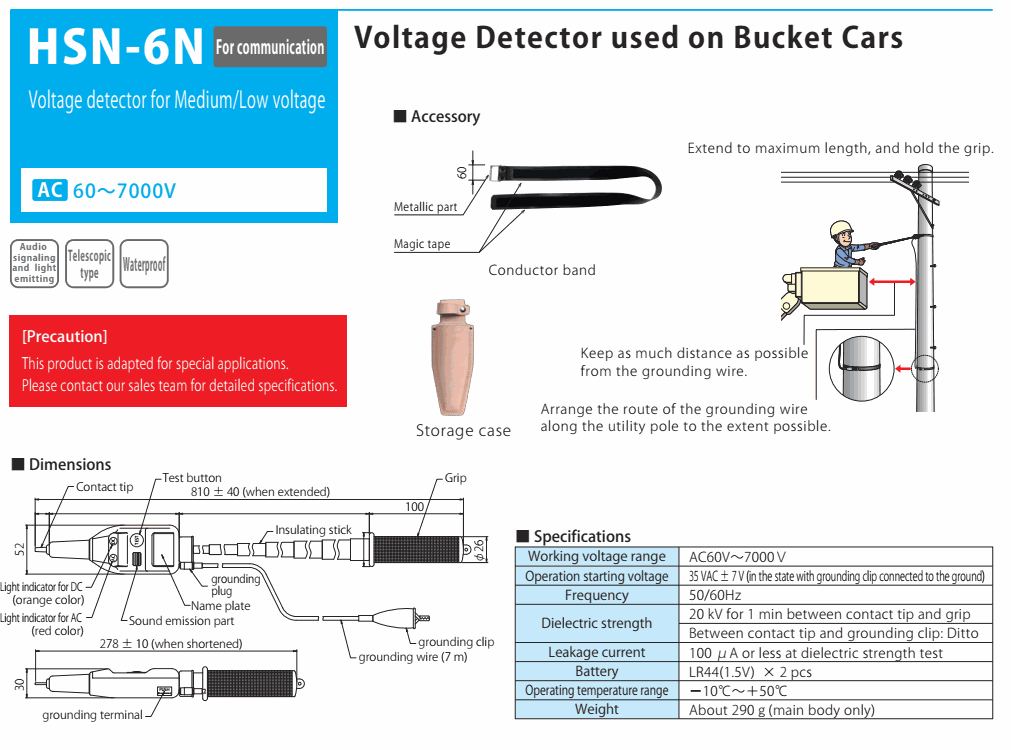

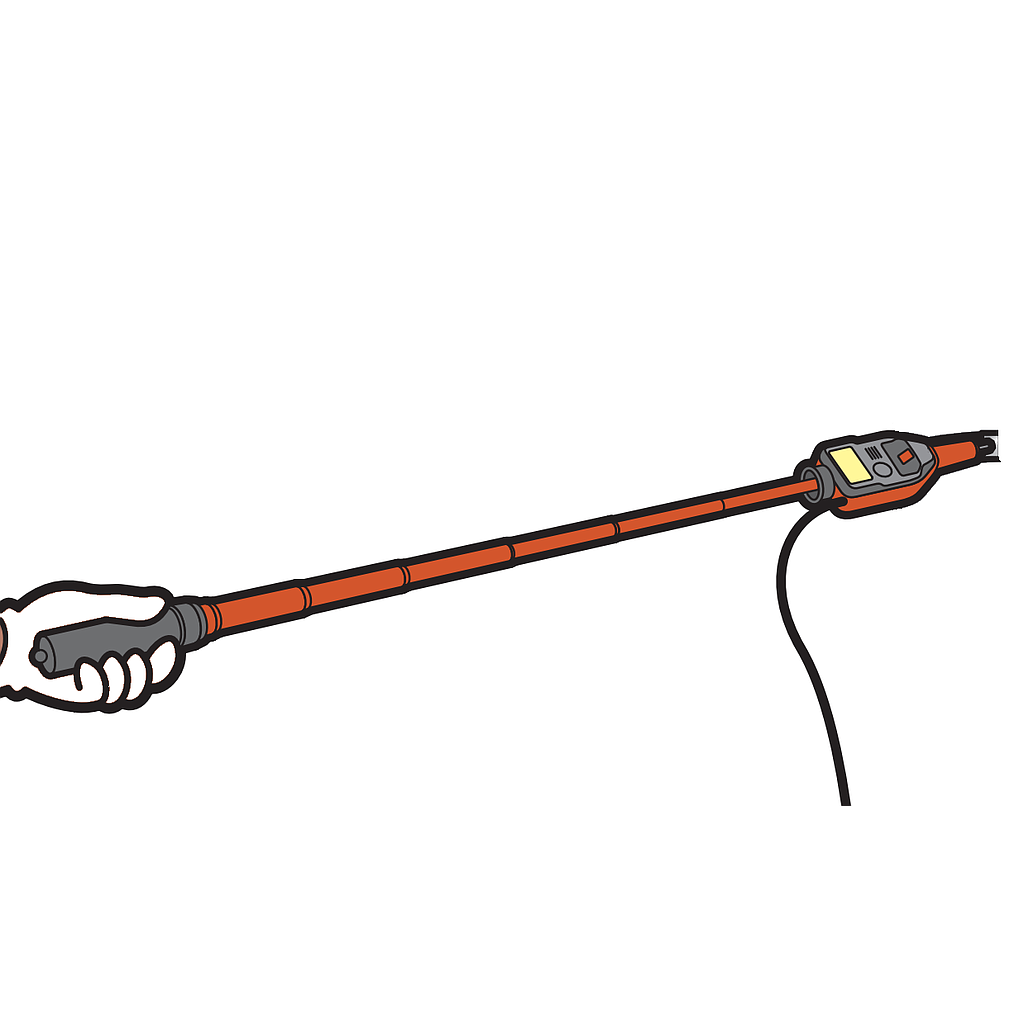

HASEGAWA HSN-6N ເຄື່ອງກວດຈັບແຮງດັນສຳລັບແຮງດັນປານກາງ/ຕໍ່າ (AC60V～7000V)

■ Specifications

Working voltage range: AC60V～7000V

Operation starting voltage: 35 VAC ± 7 V (in the state with grounding clip connected to the ground)

Frequency: 50/60Hz

Dielectric strength:

•20 kV for 1 min between contact tip and grip

•Between contact tip and grounding clip: Ditto

Leakage current: 100 μA or less at dielectric strength test

Battery: LR44(1.5V) × 2 pcs

Operating temperature range: －10℃～＋50℃

Weight: About 290 g (main body only)

■ Accessory: Conductor band, Storage case

Datasheet
