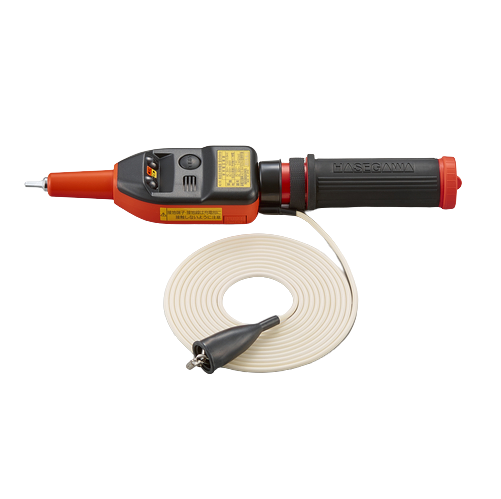

HASEGAWA HSN-6A1 ເຄື່ອງກວດຈັບແຮງດັນສຳລັບແຮງດັນປານກາງ/ຕໍ່າ (100V-7kVAC; 50V-7kVDC)
Working voltage range:
- Without grounding wire: AC: 3kV - 7kV (10.5kV AC dielectric strength test for fully extended device)
AC: 100V – 600V (with touching the device nameplate) [Operation Mode 3]
- With grounding wire attached: AC: 100V - 7kV, DC: 50V – 7kV (21 kV DC dielectric strength test for fully extended device)
Leakage current:
- Between contact tip and name plate: 4 kVAC, 1 min, 1 mA or less
- Between contact tip and grip:
+ (Insulating stick: Shortened) 20 kVAC, 1min, 100 μA or less
+ (Insulating stick: Extended) 50 kVAC, 1min, 100 μA or less
- Between contact tip and grounding clip: 26 kVAC, 1 min, 1 mA or less
- Between core of the grounding plug and outside the covering: 22 kVDC, 1 min
Detection Indicators:
- Visual: AC: red display, DC: orange display
- Visible in up to 8000 Lux environment
- Audible: intermittent sound, 60 dB @ 1 m / 3.3 ft
Frequency: 50/60 Hz, dual-use
Operating temperature: -10 ℃ to 50 ℃ 14 °F to 122 °F
Structure: Drip-proof construction
Batteries: LR44(1.5V) × 2 pcs
Included accessories: Slip-on cover, grounding wire (3 m/9.9 ft)
