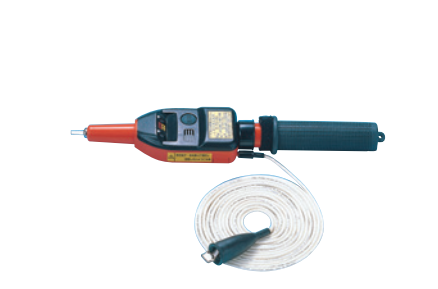

HASEGAWA HSN-6A ເຄື່ອງກວດຈັບແຮງດັນສຳລັບແຮງດັນປານກາງ/ຕໍ່າ (AC100~7000 V; DC50~7000 V)
■ Specifications
Working voltage range:
-Without grounding wire: AC
100 V to 600 V (Voltage detection by touching the name plate with a hand)
3 kV to 7 kV (With extended insulating stick)
-With grounding wire:
AC: 100 V to 7000 V (Usable up to 10.5 kV for withstand voltage test)
DC: 50 V to 7000 V (Usable up to 21 kV for withstand voltage test)
Frequency (AC): 50/60Hz
Leakage current:
- Between contact tip and name plate: 4 kVAC, 1 min, 1 mA or less
- Between contact tip and grip:
(Insulating stick: Shortened) 20 kVAC, 1min, 100 μA or less
(Insulating stick: Extended) 50 kVAC, 1min, 100 μA or less
- Between contact tip and grounding clip: 26 kVAC, 1 min, 1 mA or less
- Between core of the grounding plug and outside the covering: 22 kVDC, 1 min
Battery: LR44(1.5V) × 2 pcs
Operating temperature range: －10℃～＋50℃
Weight: About 290g
■ Accessory: Storage case; grounding wire (3m)
Datasheet
