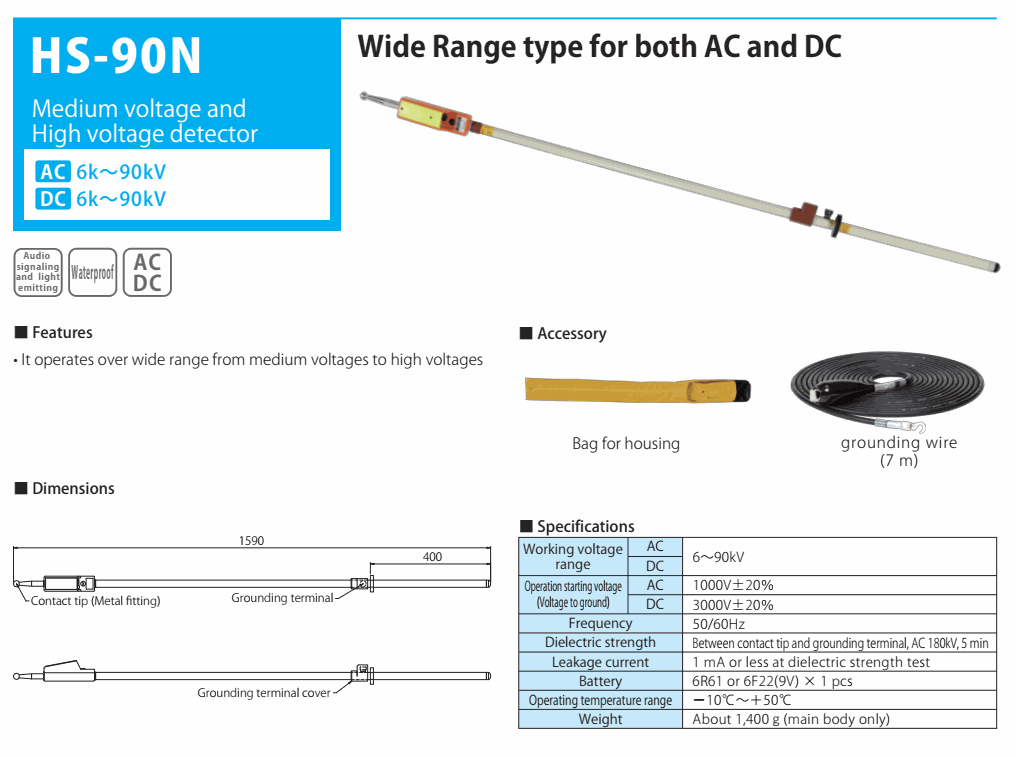

HASEGAWA HS-90N ເຄື່ອງກວດຈັບແຮງດັນກາງ ແລະແຮງດັນສູງ (6～90kV)

■ Specifications:

Working voltage range: AC/DC: 6～90kV

Operation starting voltage (Voltage to ground):

AC: 1000V±20％

DC: 3000V±20%

Frequency: 50/60Hz

Dielectric strength: Between contact tip and grounding terminal, AC 180kV, 5 min

Leakage current: 1 mA or less at dielectric strength test

Battery: 6R61 or 6F22(9V) × 1 pcs

Operating temperature range: －10℃～＋50℃

Weight: About 1400 g (main body only)

■ Accessory: Bag for housing, grounding wire (7 m)

■ Features:

• It operates over wide range from medium voltages to high voltages
