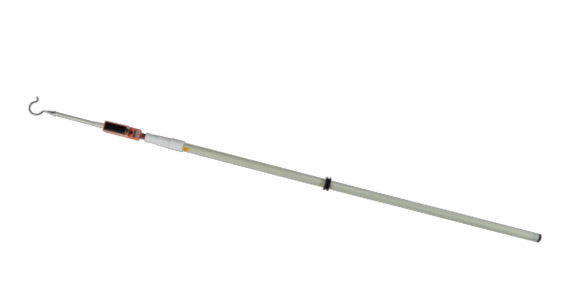

HASEGAWA HS-500 ເຄື່ອງກວດຈັບແຮງດັນສູງພິເສດ (AC250kV～550kV)

■ Specifications

Working voltage range: AC250kV～550kV

Operation starting voltage (Voltage to ground): 20 kVAC ± 20% (in contact with exposed live part)

Dielectric strength: Insulation pole 75 kVAC/300 mm, 5 min

Leakage current: 100 μA or less at dielectric strength test/1 position

Battery: 6R61 or 6F22(9V) × 1 pcs

Operating temperature range: －10℃～＋50℃

Weight: About 4.7kg

■ Accessory: Bag for housing
