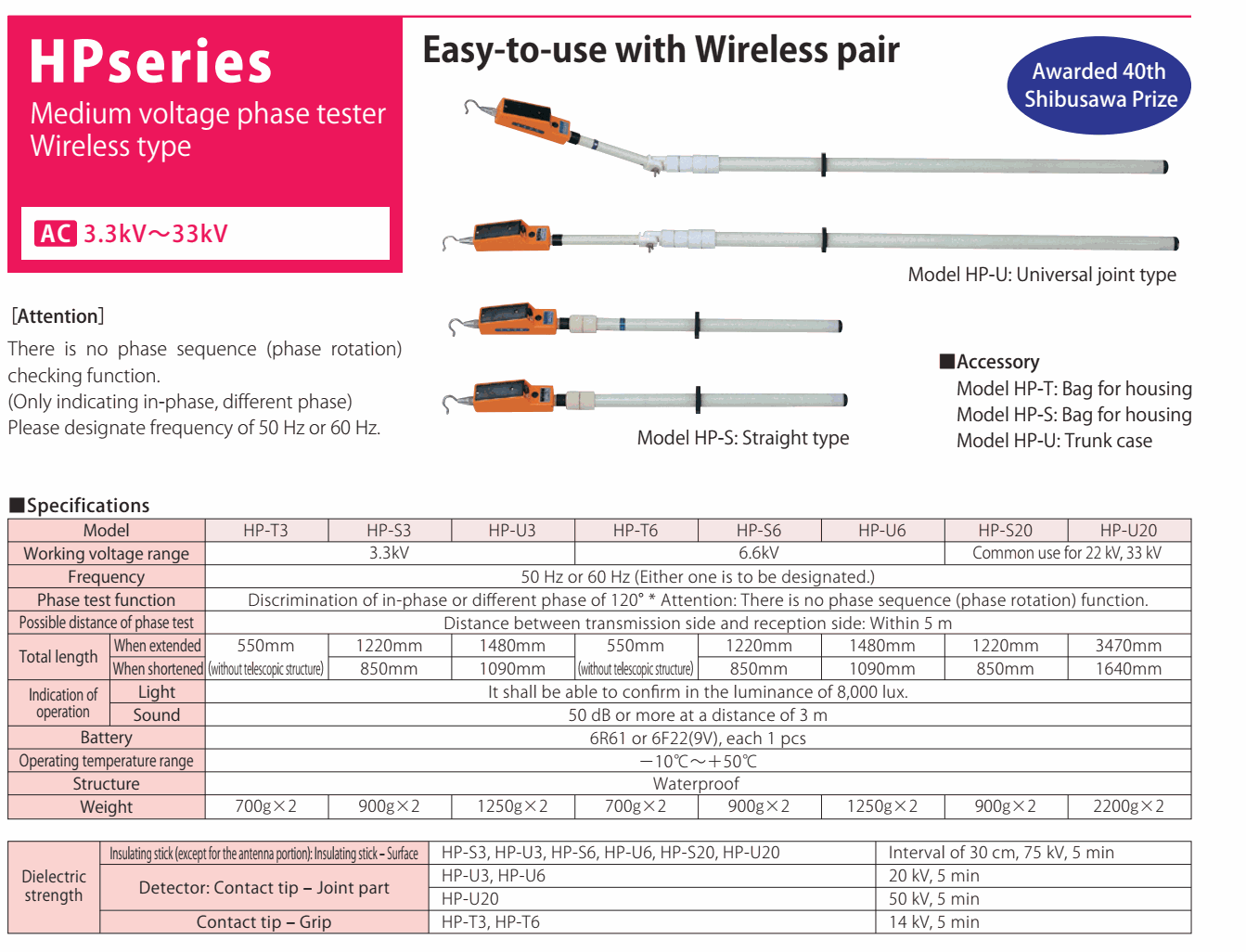

■Specifications
Working voltage range: 6.6kV
Frequency: 50 Hz or 60 Hz (Either one is to be designated)
Phase test function: Discrimination of in-phase or different phase of 120°
* Attention: There is no phase sequence (phase rotation) function.
Possible distance of phase test: Distance between transmission side and reception side: Within 5m
Total length: 550mm (without telescopic structure)
Indication of operation:
- Light: It shall be able to confirm in the luminance of 8,000 lux.
- Sound: 50 dB or more at a distance of 3m
Battery: 6R61 or 6F22(9V), each 1 pcs
Operating temperature range: －10℃～＋50℃
Structure: Waterproof
Weight: 700g×2
Dielectric strength:
-Contact tip - Grip: 14 kV, 5 min
■Accessory:
Bag for housing
Datasheet
