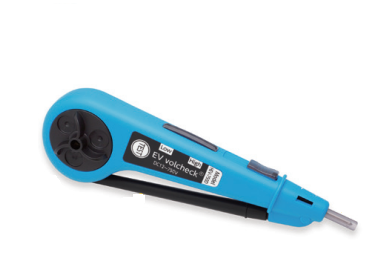

HASEGAWA HEV-750D ເຄື່ອງກວດເຊັກແຮງດັນໄຟຟ້າ DC ສໍາລັບຍານພາຫະນະໄຟຟ້າ (DC12V~750V)

■ Specifications:

Working voltage range: DC12V～750V

Operation starting voltage (No polarity):

- Low: DC 6V± 3V

- High: DC35V± 5V

Dielectric strength: Between contact tip (metal fitting) and grip: 20 kVAC, 1 min

Leakage current: At dielectric strength test: 500 μA or less

Indication of operation:

- Light: Red LED, 2 pcs

Low: Low lamp flashes

High: High + Low lamps flash

It shall be possible to confirm luminance of 8,000 lux

- Sound: Piezoelectric buzzer: Intermittent sound (High only)

50dB/30cm

Battery: R03(1.5V) × 2 pcs

Operating temperature range: -10℃～＋40℃

Dimensions:

Main body: 165mm×50mm×22mm (except for protruding part)

Probe: φ9mm×125mm

Weight: About 70g

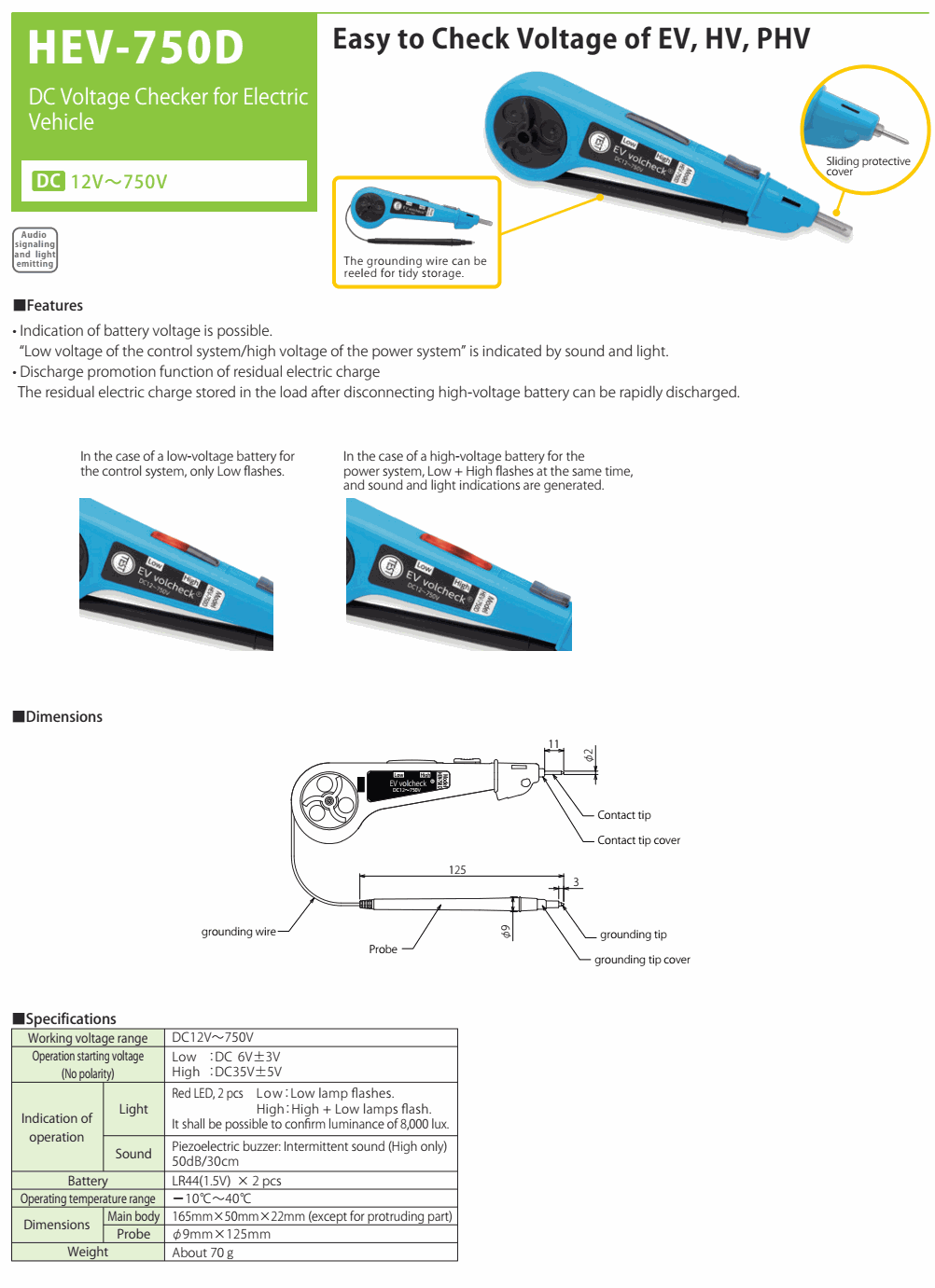

Datasheet
