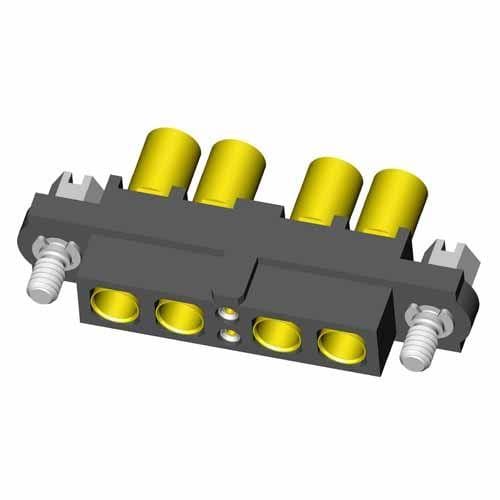

Harwin M80-4C10242F1-02-325-02-325 Power to the Board 2S+4P ການເຊື່ອມຕໍ່ຜູ້ຍິງ

Pitch: 4 mm, 2 mm

Unit Weight: 3 g

REACH - SVHC: Details

Housing Color: Black

Contact Gender: Socket (Female)

Current Rating: 20 A, 3 A

Mounting Angle: Vertical

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Voltage Rating: 300 V

Wire Gauge Max: 24 AWG

Wire Gauge Min: 28 AWG

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polyphenylene Sulfide (PPS)

Termination Style: Crimp

Number of Positions: 2 Power, 4 Signal

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
