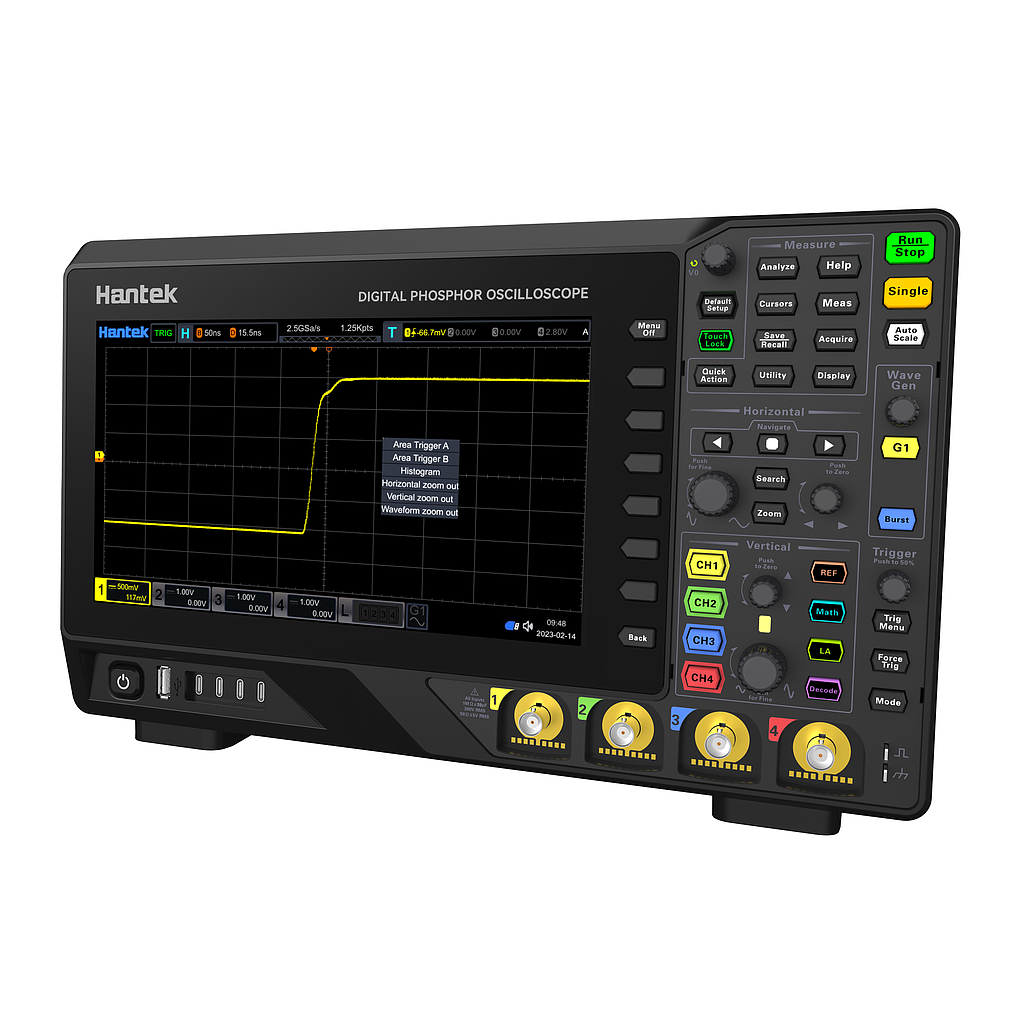

Channel: 4-Channel Oscilloscope+1-Channel Waveform Generator +16-Channel Logic Analyzer
Bandwidth: 100MHz
Real-time Sampling Rate: 2.5GSa/s single channel, 2.5GSa/s half channel, 1.25GSa/s all channel
Memory Depth: 2Gpts (single channel), 1Gpts (dual channel), 500Mpts (three-four channels)
Waveform Capture Rate: 1,100,000 wfms/s
Vertical Resolution: 12-bit
Vertical Sensitivity: 1 MΩ: 500μV/div ~ 10 V/div; 50 Ω: 500μV/div ~ 1 V/div
Time Base Range: 2ns/div~1ks/div
Time Base Accuracy: ±1 ppm ± 1 ppm/year
Bandwidth limitation: 20 MHz, 100MHz, 200MHZ, 350MHz; Independent optional for each channel
Trigger Type: Edge, Pulse, Video, Slope, Overtime, Window, Logic，Overamp, Runt, Pattern, Delay, Setup/Hold, Nth Edge, UART, LIN, CAN, SPI, I2C
Bus and Decoding: UART, I2C, SPI, LIN, CAN
Mathematical Operation: A+B, A-B, A*B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, LowPass, HighPass, BandPass, BandStop, AX+B, Expression
Automatic Measurement: 51 kinds of parameter measurement, supporting statistics and analysis
Analysis Function: Frequency meter, DVM, Power Analyzer, Histogram, Search, Navigate, Record, Bode Set
Hardware Recording and Playback: More than 2 million frames (single channel)
Input Coupling: DC, AC or GND
Input Impedance and Capacitance: 1 MΩ ± 1%，50 Ω ± 1% ；18 pF ± 3 pF
Arbitrary Waveform Generator: 1-channel signal source, 12-bit vertical resolution, maximum output frequency 50 MHz, Sine, Square, Pulse, Ramp, Noise, DC, Sinc, Exp.rise, Exp.fall, Lorentz, Gauss, ECG, Haversine and other 13 standard waveforms
Digital Channel: 16CH, 1.25GSa/s sampling rate
Interface: USB HOST, USB DEVICE, LAN； option: HDMI, serial port
Screen: 10.1 inch multi-touch capacitive screen, 256 level waveform grayscale display, with color afterglow
