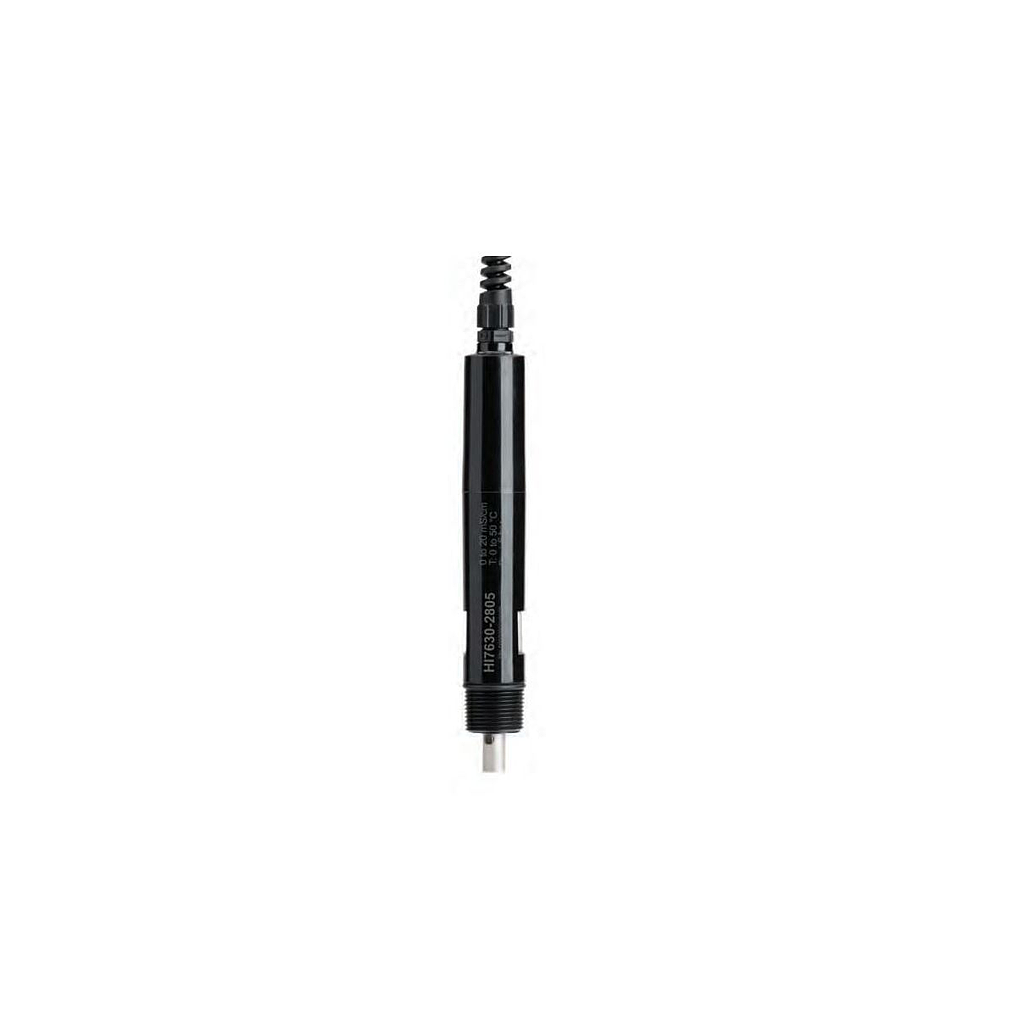

HANNA HI7630-2805 Electrode EC/TDS/ອຸນຫະພູມ (0.000 ~ 30.00 mS/cm, 0.000 mg/L ~ 15.00 g/L, 0.0 ~ 50.0 °C)

Conductivity (EC)

Range: 0.000 to 30.00 mS/cm

Resolution: 0.001, 0.01, 0.1 μS/cm; 0.001, 0.01 mS/cm

Accuracy: ±2% of the reading or ±0.050 μS/cm, whichever is greater

Total Dissolved Solids (TDS)

Range: 0.000 mg/L to 15.00 g/L (TDS factor 0.5)

Resolution: 0.01, 0.1 ppm; 0.001, 0.01, 0.1 g/L

Accuracy: ±2% of the reading or ±0.025 mg/L, whichever is greater

Resistivity

Range: 34 Ω•cm to 99.99 MΩ•cm

Resolution: 1 Ω•cm; 0.01, 0.1, 1 kΩ•cm; 0.01 MΩ•cm

Temperature

Range: 0.0 to 50.0 °C (32.0 to 122.0 °F)

Accuracy: ±0.5 °C / ±1.0 °F

Temperature Calibration: Single-point offset (controller setting)

Temperature Compensation

Options: Linear, Natural, Standard, None

Temperature Source: Automatic (from probe), Manual

Body Material: PVDF

Sensor Type: 2 poles, AISI 316 stainless steel

Insulation: PVDF/Silicone

Diameter: 10 mm

Maximum Pressure: 6 bar

Connection Thread: 3/4" NPT

Protection Rating: IP68

Cable Length: 5 m
