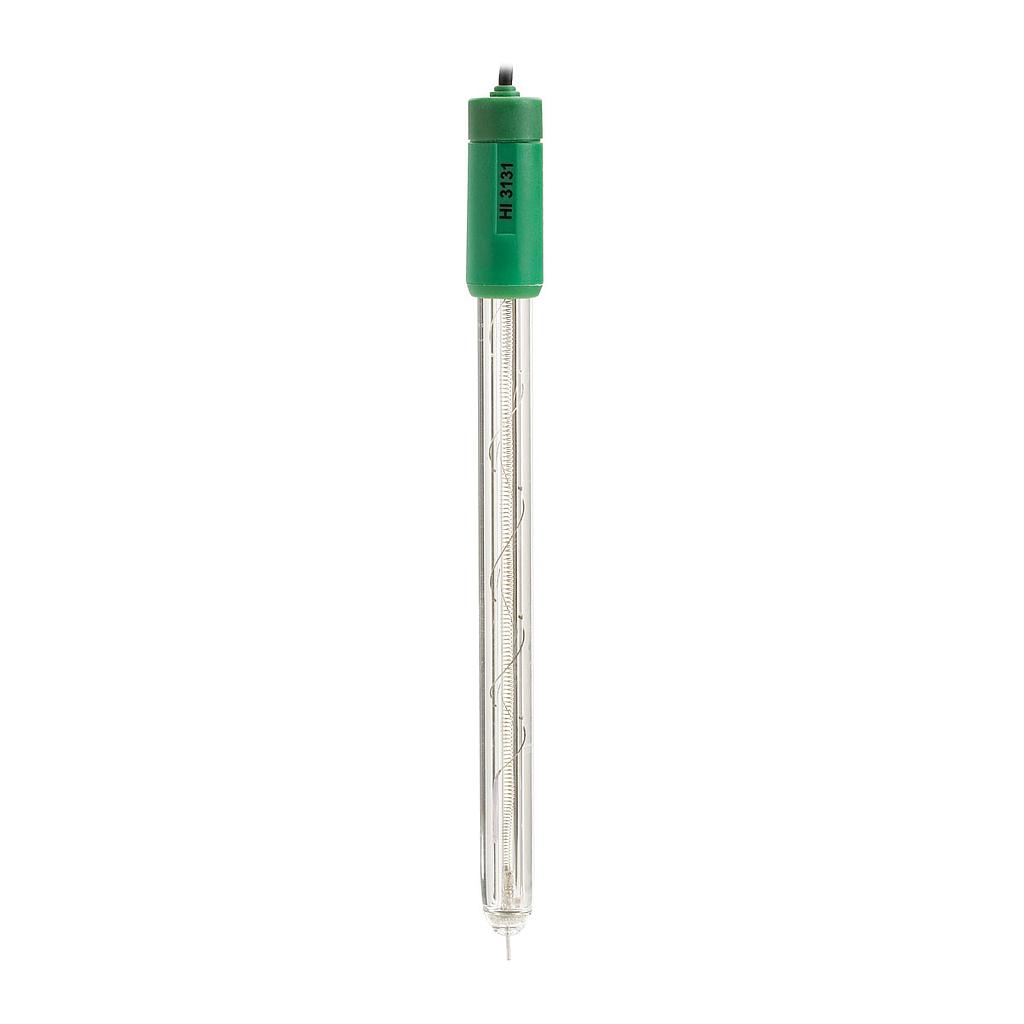

HANNA HI3131B ORP electrode

Body Material:glass

Reference:single, Ag/AgCl

Junction/Flow Rate:ceramic, single / 15-20 μL/h

Electrolyte:3.5M KCl + AgCl

Range:pH: ORP: ±2000 mV

Max Pressure:0.1 bar

Tip Shape:platinum pin

Diameter:12 mm

Body Length / Overall Length:150 mm / 205.5 mm

Recommended Operating Temperature:-5 to 70°C (23 to 158°F)

Temperature Sensor:no

Matching Pin:no

Amplifier:no

Digital:no

Cable:coaxial; 1 m (3.3’)

Connection:BNC

Applications:general purpose, laboratory general purpose, ORP titrations
