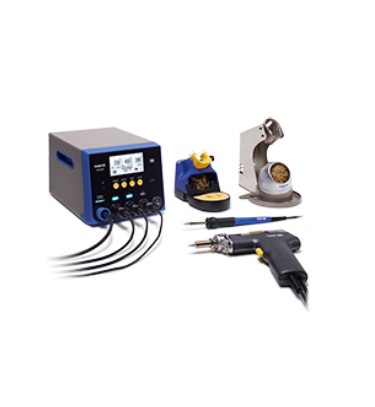

HAKKO FX-973 ສະຖານີສ້ອມແປງ 3 ທ່າ (50 ~ 450°C)
Power consumption: 400 W
Temperature range: 50 to 450℃
With heavy-duty soldering iron connected: 50 to 500℃
With desoldering tool connected: 330 to 450℃
Temperature stability: ±3℃ (At idle temperature)
With heavy-duty soldering iron and desoldering tool connected: ±5℃ (At idle temperature)
Station
Output Voltage: AC 24 V
Vacuum generator: Vacuum pump, double cylinder type
Vacuum pressure (max.): 80 kPa (600 mmHg)
Suction flow: 15 L/min.
Dimensions: 158 (W) × 135 (H) × 254 (D) mm
Weight: 5.3 kg
Handpiece (FX-9701 soldering iron)
Power consumption: 95 W (24 V)
Tip to ground resistance: ＜2 Ω
Tip to ground potential: < 2 mV
Heating element: Composite heater
Cord length: 1.2 m
Total length: 206 mm (with T39-D24 tip)
Weight: 31 g (with T39-D24 tip)
Handpiece (FR-4103 desoldering tool)
Power consumption: 140 W (24 V)
Nozzle to ground resistance: < 2 Ω
Nozzle to ground potential: < 2 mV
Heating element: Composite heater
Standard nozzle: 1.0 mm dia. S type (No. N61-05)
Cord length: 1.2 m
Total length: 168 mm (with N61-05 nozzle)
Weight: 190 g (with N61-05 nozzle)
