HAKKO FR-701 W / 3 ສາຍໄຟທີ່ບໍ່ມີປລັກ W / FR-4103 ລະບົບການສ້ອມແປງ
Power consumption: 260W
・Station
Dimensions: 190(W)×140(H)×220(D)mm
Weight: 6.2kg
・ Station (Soldering)
Output voltage: AC 26V
Temperature range: 50 to 480ºC
Temperature stability: ±1ºC at idle temperature (When set to 200 to 480ºC)
・Station (Desoldering)
Output voltage: AC 24V
Vacuum generator: Vacuum pump, double cylinder type
Vacuum pressure: 80kPa (600mmHg)
Suction flow: 15L/min.
Temperature range: 330 to 450ºC
Temperature stability: ±5ºC at idle temperature
・ Soldering iron
Power consumption: 65W (26V)
Tip to ground resistance: <2Ω
Tip to ground potential: <2mV
Heating element: Ceramic heater
Standard tip: Shape-B (No.T18-B)
Cord length: 1.2m
Total length: 222mm (with B tip)
Weight: 52g (with B tip)
・Desoldering Gun
Power consumption: 140W (24V)
Nozzle to ground resistance: <2Ω
Nozzle to ground potential: <2mV
Heating element:; Composite heater
Standard nozzle: Φ1.0mm S type (No.N61-05)
Cord length: 1.2m
Total length: 168mm (with Φ1.0mm S type nozzle)
Weight: 190g (with Φ1.0mm S type nozzle)

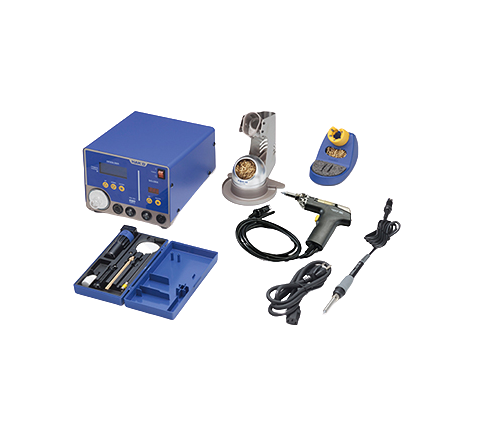

Packing list: Station、Soldering iron (FX-8801), Desoldering gun (FR-4103), Iron holder for soldering gun (with cleaning wire), Iron holder for desoldering iron (with cleaning sponge, cleaning wire), Tool box (Cleaning pin for ø1.0 mm, Cleaning pin for heater, Cleaning drill for ø1.0 mm, Nozzle wrench, Filter [qty 2], Ceramic paper filter [qty 4]), Power cord, Instruction manual
