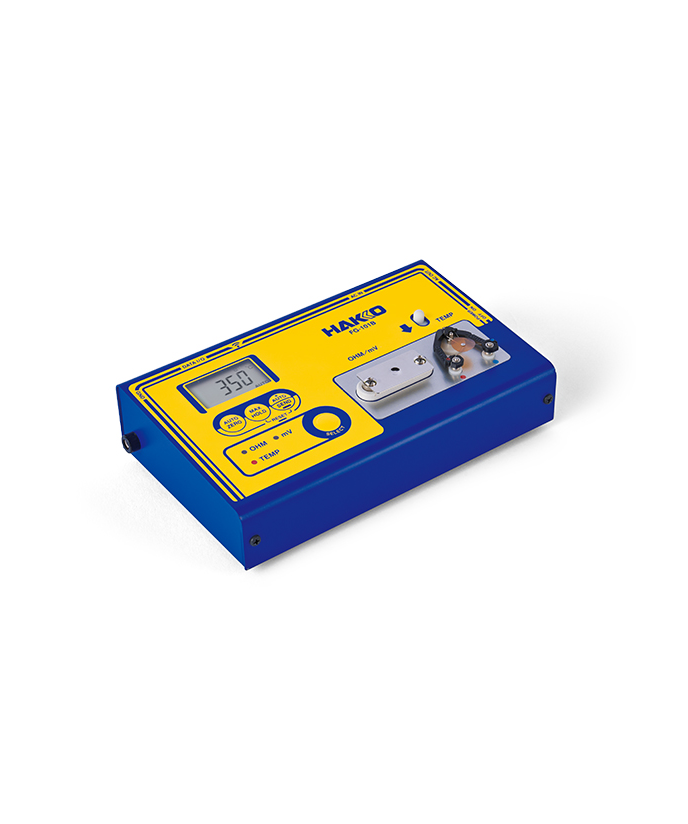

HAKKO FG-101B ຕົວທົດສອບເຄື່ອງບວງບຸນ (0 ~ 700℃, 0 ~ 40 mV, 0 ~ 40 Ω)

Power consumption: 3.2 W (100 V), 3.6 W (100-110 V), 3.2 W (120 V), 3.6 W (220-240 V)

Temperature resolution: 1℃

Temperature measurement range: 0 to 700℃

Temperature accuracy:

±3℃ (300 to 600℃)

±5℃ (other than above)

Temperature sensor: K (CA) type thermocouple

Voltage resolution: 0.1 mV

Voltage measurement range: 0 to 40 mV

Voltage accuracy: ±(5% of reading + 1 digit)

Resistance resolution: 0.1 Ω

Resistance measurement range: 0 to 40 Ω

Resistance accuracy: ±(5% of reading + 1 digit)

Display: LCD : 3 1/2 digits

Operating environment: Ambient temperature / Humidity range : 0 to 40°C, max.80% RH (without condensation)

Environmental conditions: Applicable rated pollution degree 2 (According to IEC/UL 61010-1)

Dimensions: 211 (W) × 53 (H) × 126 (D) mm

Weight: 0.95 kg
