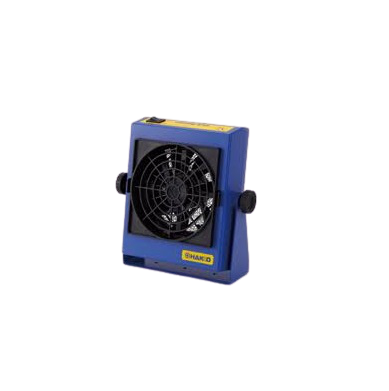

HAKKO FE-510 W / FLAT 2 Pin Plug (W / Adapter) Static Eliminator
AC adapter output/Capacity: DC24V 10VA
Discharge method: High frequency AC method
High voltage output: AC2,000V approx.
Ion balance: ±10V or less
Static elimination time:
Straight louver: approx.1.5 seconds
Wide-angle louver: approx.2.5 seconds
High voltage abnormality output (ALARM)MOS FET relay non-voltage contact output
Maximum current: 100mA
Applied voltage: DC30V or less
Cleaning check output (C.C): MOS FET relay non-voltage contact output
Maximum current : 100mA
Applied voltage : DC30V or less
Air flow: 1.5 to 3.0m3/min.
Air flow out angle: Vertically 360ºvariable (every 10º)
Quantity of produced ozone: 0.04ppm or less
Operation environment: Ambient temperature/humidity range : 0 to 40ºC, 15 to 65% (without condensation)
Material for discharge needles: Tungsten
Dimentions: 150(W)×182(H)×50(D)mm (without stand)
Weight: Approx. 0.79kg
・AC Adapter
AC adapter output/Capacity: DC24V 1A
Dimentions: 34(W)×72(H)×51(D)mm
Weight: Approx. 100g
Packing List: Static eliminator unit, wide-angle/straight louver, cleaning brush, filter, AC adapter, output signal connection leads (set of 3), and instruction manual
