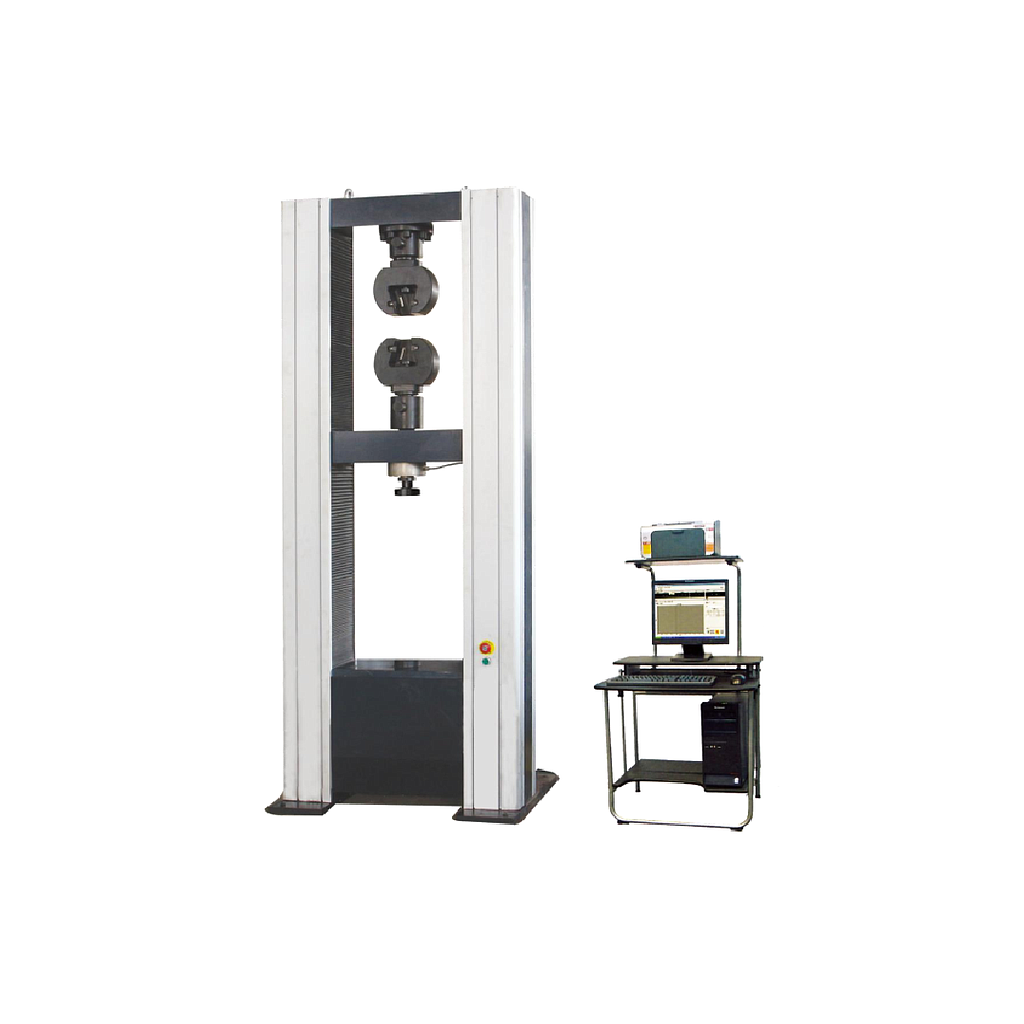

Max. Force: 10T (100KN)
Load cell: Germany brand load cell for high accuracy
Control system: PC with windows 7 system or windows 10 system
Motor: Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading: kgf, Ibf, N, KN, T, etc.
Stoke: 1100mm including fixture
Load cell resolution: 1/250,000
Load precision: ≤0.5%
Test speed: 0.01~300mm/min (adjustable)
Test width: ≤400mm
Dimension (L×W×H): 868*580*1836mm
Weight: 600KG Approx
Software: TM 2101
Curves display: Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display: Max. force, speed, sample information, strength (Kpa, Mpa, N/mm, N/mm2) etc…
Safety features:
1 E-Stop
2 Over-load protection
3 Upper and lower limit switches
4 Load sensor with automatic retreat
