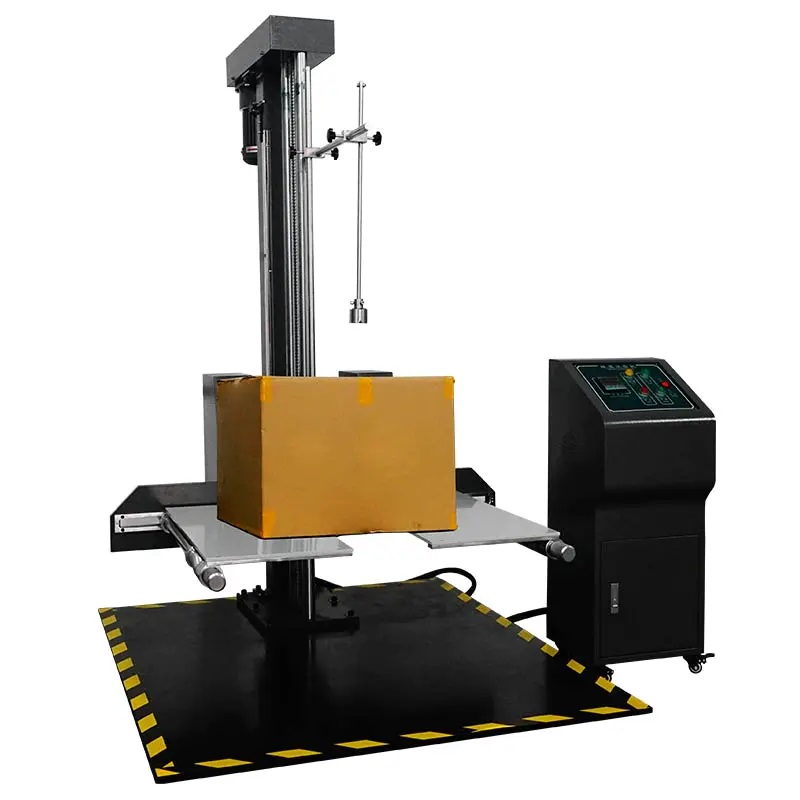

HAIDA HD-A520-1 Double Wing Drop Testing Machine For Package Box (100Kg, 300~2000mm)

Specifications

Display method: Digital Display, English Display

Drop height: 300~2000 mm

Maximum sample weight: 100kg

Maximum sample size (L×W×H): 1000x800x1000 mm

Device size (L×W×H): about 1900×1000×2000 mm

Control box size (L×W×H): 350x350x1100 mm

Weight: about 800 kg

Power supply: 3ø, AC380V, 50/60Hz

Specifications
1.High quality,with reasonable price
2.High accuracy and high precision
3.Great after-sales service

The usage
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this Drop Testing Machine simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.

FEATURES
1. Outside material: advanced paint coat
2. Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
3. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
4. Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs
