Specifications:
Unit (switchable): Kg, Lb, N
Capacity (optional): 2T
Load Resolution: 1/100,000
Stroke (exclude the grips): 400 mm
Load Accuracy: ≤0.5%
Test Space (L×W×H): 800×1000×1000mm
Speed of Compression: 10 ± 3 mm/min
Operation Mode: PC
Report Items: Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure: AC Frequency Conversion Motor ( Taiwan); Imported screw rod ;4 sensors; LED display
Dimension (L×W×H): 2370×1500×2100mm (can be custom made)
Power: 1ø, 220v/ 50Hz
Weight: Approx. 850kg
Safety Devices: Overload protection, overvoltage protection & limited position protection device
Standard: TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642
Specifications
1.High quality
2.2 years warranty
3.Up to TAPPI-T804,
4.Reasonable price
1/ About the machine:

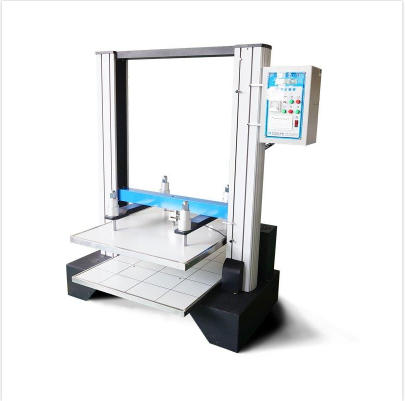

ASTM-D642 Carton Compression Testing Instrument electronic test and measurement instrument is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.
2/ Design criteria:
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4
3/ Features
ASTM-D642 Carton Compression Testing Instrument
Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
ASTM-D642 Carton Compression Testing Instrument can do test of compression, bending, pressure holding & fatigue.
With high precision and accuracy and reasonable price,ASTM-D642 Carton Compression Testing Instrument can test the crush instantaneously and stop automatically.
The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC
