Display:
Alphanumerical display, 4 rows of 16 characters
Material:
Sensor Body: stainless steel;
Probe: stainless steel;
Sensor Window: sapphire
Measurement Modes:
Continuous measurement, integration time settings 0 - 1000 seconds
Measuring Principle:
Combined multiple beam alternating light method with infrared diode system and beam focusing.;
Turbidity: 2-channel 90° scattered light measurement in accordance with DIN/EN 27027/ISO 7027;
additional measurement value verification through six-channel multiple-angle measurement;
Solids: Modified absorption measurement; six-channel multiple-angle measurement;
Memory: Up to 290 measuring points
Operating Pressure: 0 to 10 bar (0 to 145 psi)
Operating Temperature Range: 0 - 60 °C
Power:
Automatic shut down after 4 minutes (if no button has been pressed and no permanent measurement is activated)
Precision Suspended Solids:
< 4 % ± 0.001 g/L , whichever is greater
Precision Turbidity:
< 3 % or ± 0.02 NTU , whichever is greater
Pressure Range: Max. 10 bar
Protection Class: Probe IP68; Control unit IP 55
Range: TSS 0.001 - 400g/L
Turbidity: 0.001 - 9999 FNU
Relative Humidity: 0 - 95 %
Resolution:
Suspended Solids: 0.01 at 1 - 9.999 g/L
Suspended Solids: 0.1 at 10 - 99.9 g/L
Suspended Solids: 1 at greater than 100 g/L
Resolution turbidity:
0.001 @ 0 - 0.999 NTU
0.01 @ 1 - 9.99 NTU
0.1 @ 10 - 99.9 NTU
1 at greater than 100 NTU
Sensor Cable: Cable Length 10 m (32.8 ft.) cable with marks for distance, Current Input 60 mA
Dimensions:
Case L: 450 mm (17.7 in)
Meter (H X W X D): 110 x 230 x 40 mm (4.33 x 9.06 x 1.57 in.)
Probe (Ø X L) 40 mm x 29 cm (1.57 x 11.42 in.)
Weight:
Probe: 3.5 lbs (1.6 kg)
Meter: 1.2 lbs (0.54 kg)

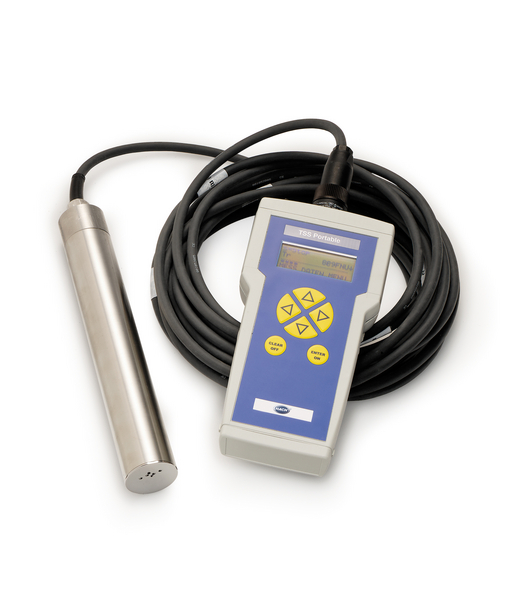

Included : Turbidity, Suspended Solids and Sludge Level probe, meter, rechargeable batteries, charger (not available in US and Canada), user manual, carrying case
