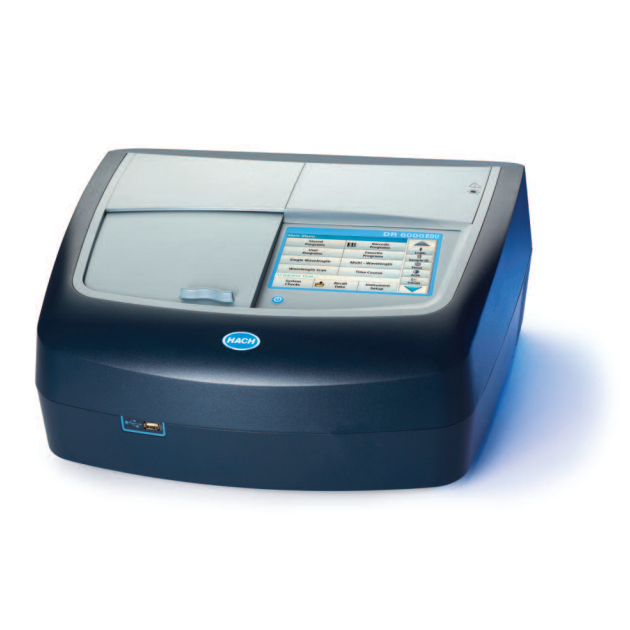

HACH DR 6000EDU UV-VIS Spectrophotometer

Operating Mode: Transmittance (%), absorbance and concentration (wavelength, time)

Source Lamp: Tungsten (visible range), deuterium (UV range)

Wavelength Range: 190 - 1100 nm

Wavelength Accuracy: ±1 nm

Wavelength Reproducibility: < 0.1 nm nm

Wavelength Resolution: 0.1 nm

Wavelength Selection: Automatic, based on method selection

Spectral Bandwidth: 2 nm

Scanning speed: 900 nm/min (in 1 nm steps)

Photometric Range: ± 3 Abs (measuring)

Photometric Accuracy: 5 mAbs at 0.0-0.5 Abs < 1% at 0.5-2.0 Abs at 546 nm

Photometric Linearity: 0.005 - 2 Abs ≤ 0.01 at > 2 Abs with neutral glass at 546 nm

Stray Light: KI-solution at 220 nm < 3.3 Abs/ < 0.05

Display: TFT 7 inch WVGA color touch

Dataloger: 5000 data points (result, date, time, sample-ID, user-ID)

User Programs: 200

Compatible Sample Cells:

Rectangular 10, 20, 30, 50 mm, 1"; round 13 mm, 16 mm, 1";

Optional 100 mm rectangular cell with additional adapter

Dimensions (H×W×D): 8.5 x 19.7 x 18.1" (215 x 500 x 460 mm)

Weight: 24.25 lbs. (11 kg)

Operating conditions: 10 at 40 °C, max. 80% relative humidity (non-condensing)

Storage Environment: -25 to 60 °C max. 80% relative humidity (non-condensing)

Enclosure Rating: IP20 with closed lid

Interfaces: USB type A (2), USB type B, Ethernet
