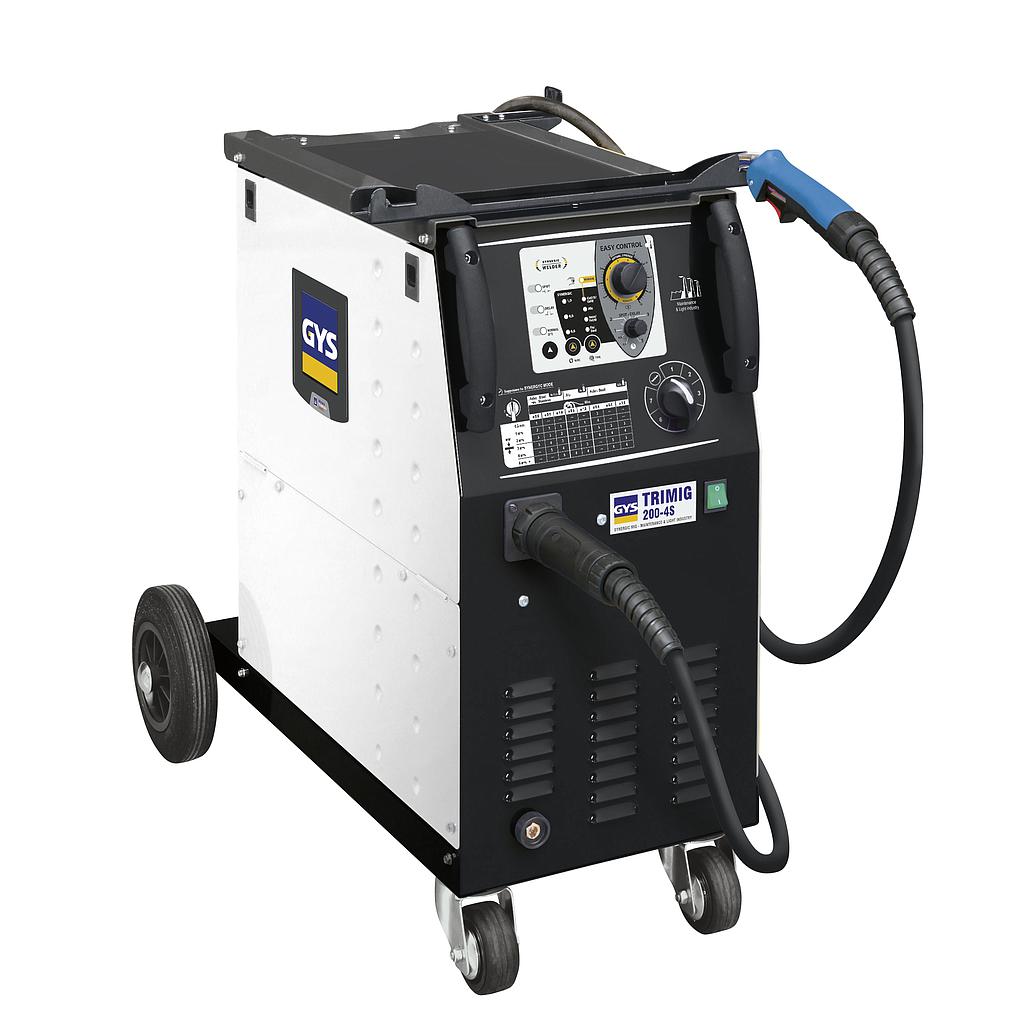

GYS TRIMIG 200-4S ເຄື່ອງເຊື່ອມ MIG/MAG (3ph; 400V; 30-200A; No Regulator)
The TRIMIG 200-4S is a « synergic » three phase welding unit, ideal for maintenance and locksmith work. It can weld steel, stainless, aluminium, and it is particularly suitable for intensive professional work up to ø1.
PRODUCT
In « Synergic » mode, setting is fast and simple. The Micro processor controller will automatically set the optimum wire speed. This avoids complex set-up and ensures optimum welding parameters.
3 FUNCTIONS AVAILABLE
- Normal
- Spot: Spot welding with adjustable spot diameter
- Delay: « Chain spot » function (Spot welding with time adjustment between 2 spots).
SYNERGIC MODE FOR EASY AND QUICK SETTINGS
- With this function, the wire speed setting is Automatic.
Simply select:
• the wire type
• the wire ø
• the power
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 10A
Rate current output: 30-200 A
Duty cycle (environment temp. at 40°C):
- Imax 30-200 A
140 A / 21 V @ 60%
120 A / 20 V @ 100%
Motor speed: 1 - 15 m/min- 4 rollers (2 motors)
Supported wire reels: Ø200-300 mm
Wire diameter:
+ Steel, inox: 0.6 - 1 mm
+ Aluminum: 0.8 - 1 mm
+ CuSi / CuAl: 0.8 - 1 mm
Voltage positions switch: 7
No-load voltage: 17-34.5 V
Protection level: IP 21
Dimensions (L x w x h): 77 x 79 x 47 cm
Weight: 63 kg
Standard: IEC 60974-1/5/10 A
Original equipment (roller): 0.8/1.0 - B (Steel, inox)
Included accessories: Torch TOPARC MIG 250A - 3 m + Earth clamp with cable 250 A - 2 m, 25 mm²
Optional accessories: Torch MB25 kit (250A) - 041233
