STANDARD DELIVERY:

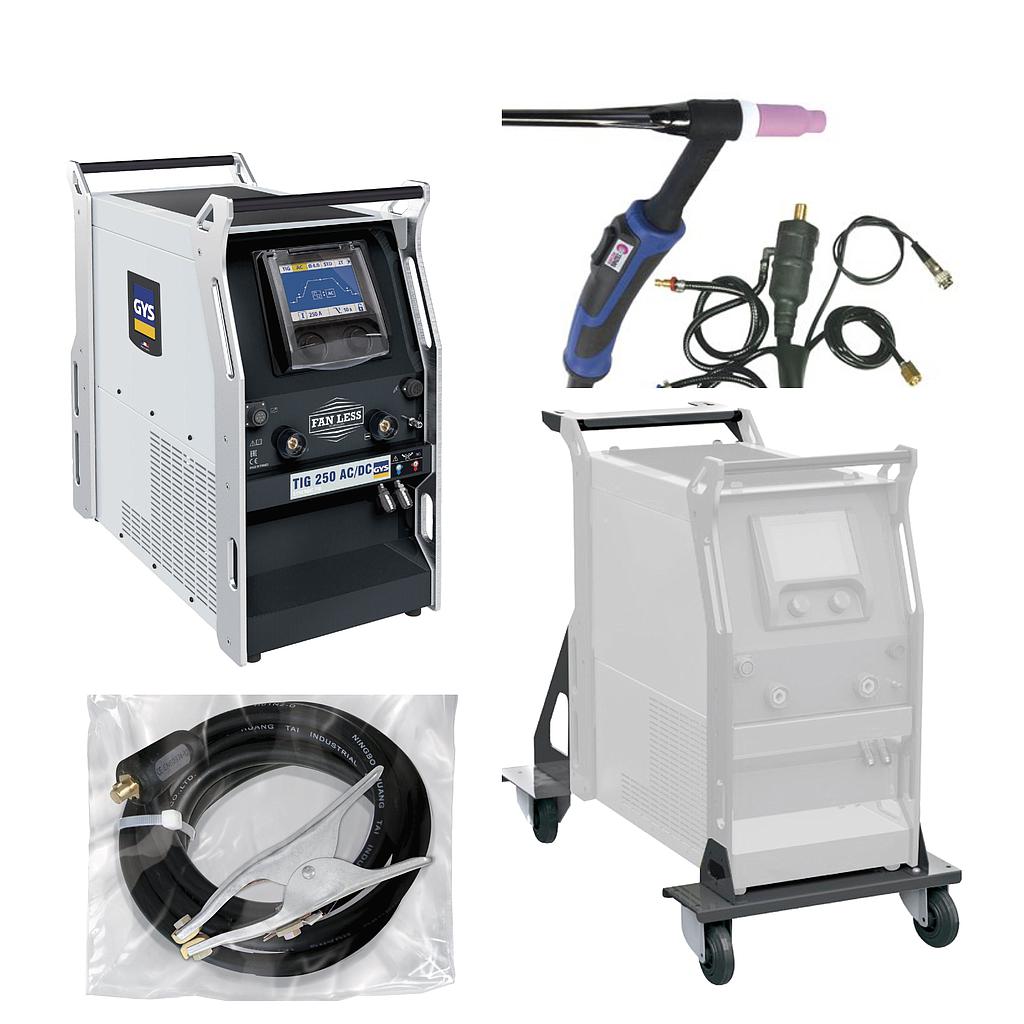

1. TIG 250 AC/DC
This industrial TIG, with a high duty cycle, is designed to weld steel, stainless steel, copper and aluminium alloys. Its reinforced steel casing is ideal for on-site work and its advanced cooling mode gives the highest duty cycle and protects it against dust.
PROFESSIONAL INTERFACE:
- 5.7” TFT display screen offering large information readability : current, thickness, welding mode, etc.
- 2 control knobs to easily navigate through the different menus.
SYNERGIC MODE:
simplified mode which offers automatic configuration of welding parameters tailored to the users’ requirements. Simply enter 4 settings:
• metal
• assembly type
• electrode diameter
• thickness of the metal to weld.
MANUAL MODE:
The operator has full control of all the TIG settings to suit the welding requirements. 250 user selected parameters can be saved in the machine for future recall.
EXCEPTIONAL LIQUID COOLING SYSTEM:
The internal electronics are cooled by an advanced system with no fan required giving the added advantage of protection from dust ingress « Fanless »
ROBUST DESIGN (HORS MARINE):
The casing is reinforced by an external aluminium structure to allow safe lifting without damaging the machine.
An easy to set up trolley enables conversion into a transportable unit with a 10m³ gas bottle support.
TWO MMA MODES:
Easy mode or PRO mode with access to every parameter.
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 16 A
Maximum welding current: 250 A (AC) 250 A (DC)
Normal current output (TIG AC): 10-250 A
Normal current output (TIG DC): 5-250 A
Normal current output MMA: 10-250 A
Duty cycle (environment temperature at 40°C):
- TIG AC:
250 A/20 V @ 60%
200 A/18 V @ 100%
- TIG DC:
250 A/20 V @ 60%
200 A/18 V @ 100%
- MMA:
250 A/30 V @ 40%
230 A/29.2 V @ 60%
200 A/28 V @ 100%
Dimensions (L x w x h): 48X80X75 cm
Weight: 58 kg
Protection class: IP23
Standard: IEC 60974-1/2/3/10 A
No-load voltage: 85V
2. Torch TIG GRIP SR18L DB - 4 m 046092
3. Earth clamp with cable 250 A 4 m / 25 mm² 043794
4. Trolley 040960
