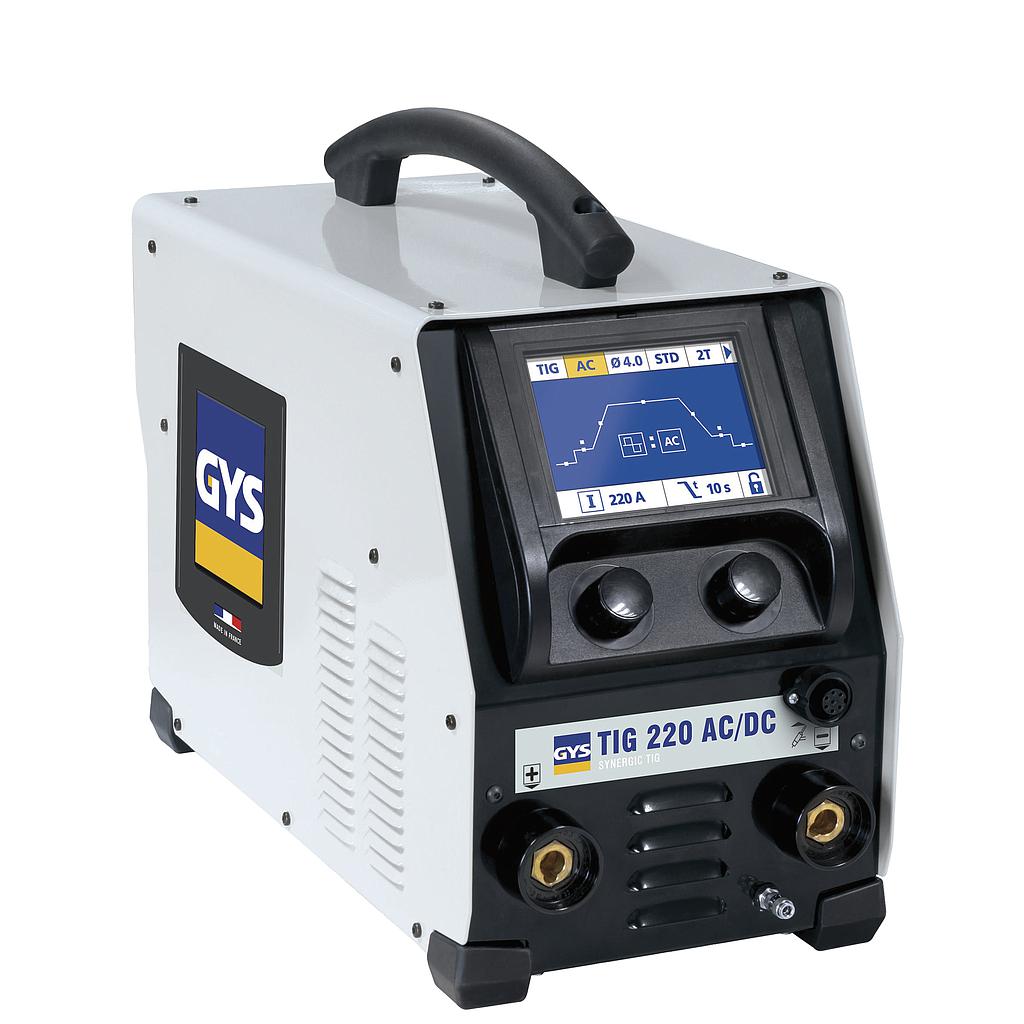

GYS TIG 220 AC/DC HF FV ເຄື່ອງເຊື່ອມ TIG AC/DC ແລະ MMA (1ph; 230V; 220A AC/DC; no accessories)
Professional, single phase, 220 Amp AC/DC TIG welding machine, suitable for welding most materials including steel, stainless, aluminium and copper. Manufactured in France.
- A professional interface: 5,7’’ TFT display screen and two control knobs make set-up and adjustment of welding parameters easy and intuitive.
Features:
• Flexible Voltage :
Works on both 110/240V power supplies
• Power Factor Correction (PFC):
Enables trouble free use on long extension cables and is generator friendly
• Anti-dust corridor :
Fan cooling system stops metallic dust from being blown onto electronic circuit boards protecting against premature board failure
• Pulse mode :
Adjustable pulse frequency, ideal for working on thin material by reducing heat distortion.
• Synergic mode :
Time saving feature, just enter material type, thickness and electrodes size and the machine calculates ideal welding parameters.
• HF and LIFT start options
• Tack spot mode : Fast tack mode with no oxidation
• Integrated Technologies
Specifications:
Power supply: 230 V, 1 ph, 50/60 Hz
Fuse: 16 A
Maximum welding current: 220 A (AC) 220 A (DC)
Normal current output (TIG AC): 10-220 A (230 V)
Normal current output (TIG DC): 5-220 A (230 V)
Normal current output MMA: 10-220 A (230 V)
Duty cycle (environment temperature at 40°C):
- TIG AC:
220 A/18.8 V @ 40%
185 A/17.4 V @ 60%
170 A/16.8 V @ 100%
- TIG DC:
220 A/18.8 V @ 35%
175 A/17 V @ 60%
160 A/16.4 V @ 100%
- MMA:
220 A/28.8 V @ 25%
160 A/26.4 V @ 60%
130 A/25.2 V @ 100%
Dimensions (L x w x h): 25x52x40 cm
Weight: 20 kg
Protection class: IP23
Standard: IEC 60974-1/3/10 A
No-load voltage: 75V
Optional accessories:
- Cooling unit WCU-1Kw A Ref. 039773
- Remote control:
Manual: 045675
Foot pedal: 045682
Choosing optional accessories when ordering
