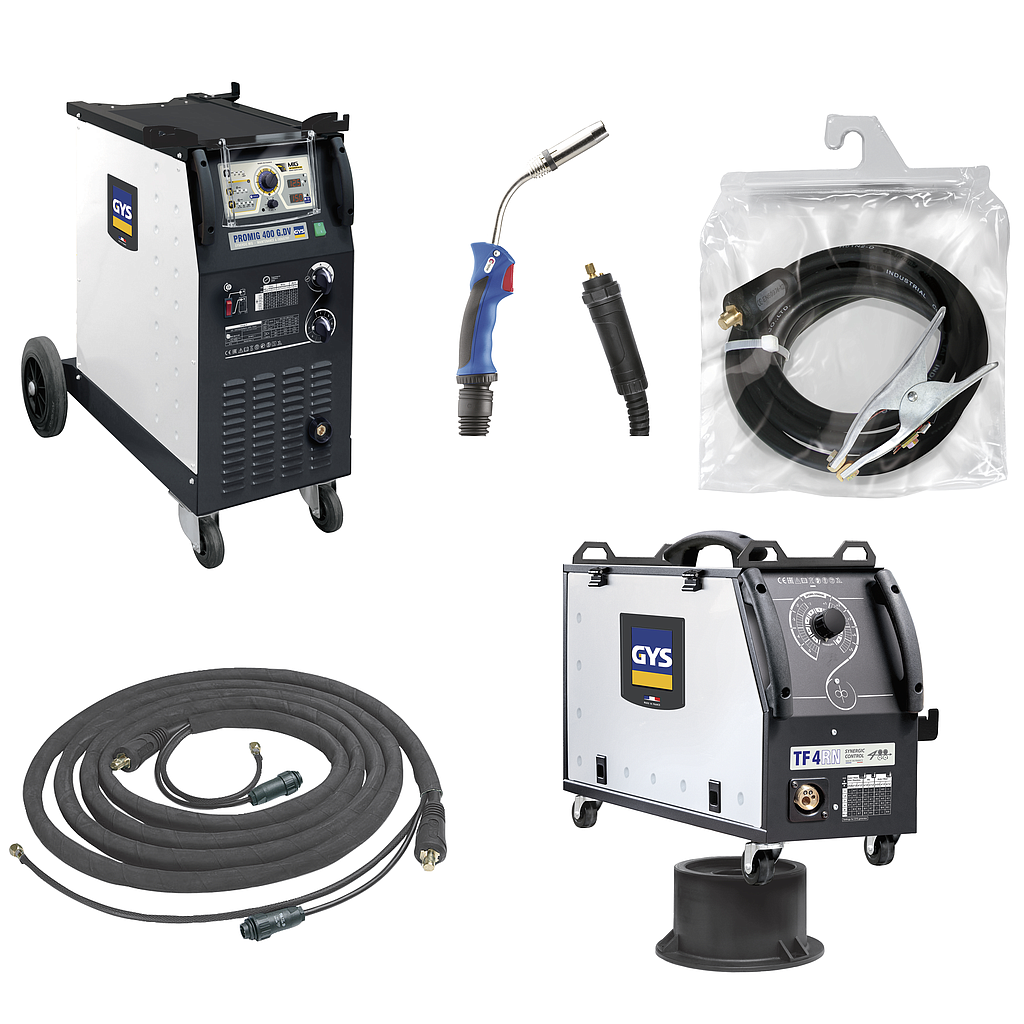

STANDARD DELIVERY:
1. PROMIG 400 G.DV
3 Phase Synergic welding machine ideal for semi industrial work, maintenance and locksmith work. For use with separate wire feeder (TF 4R), the Trimig 400G is recommended for professional work up to a 1.2mm on steel, stainless-steel and aluminium Easy and fast set up with its synergic control.
TRIGGER SETTING
- 2T: 2 stroke welding
- 4T:4 stroke welding, to weld during a long period: without constantly pressing the trigger
- Spot: for plug welding
2 FUNCTIONS: MANUAL OR SYNERGIC
Synergic Mode. No need to adjust the wire speed Microprocessor controlled, the machine automatically selects the optimum welding parameters
Select:
-Wire Type
- Wire diameter
- Power: 2 switches = 14 positions
PROMIG 400 G.DV automatically adjusts
- Wire speed
- Pre-gas and post-gas
- Bumback
Manual mode: Manual setting of the wire speed
Selection of the wire speed driver: To switch the setting of the wire speed to or from separate wire feeder for a quick adjustment where required.
Specifications:
Power supply: 230 V/400 V, 3 ph, 50/60 Hz
Fuse: 40A (230V) / 25A (400V)
Rate current output: 40-350 A
Duty cycle (environment temp. at 40°C):
350 A / 31.5 V @ 35%
270 A / 27.5 V @ 60%
220 A / 25 V @ 100%
Air cooled wire feeder: TF-4RN 9 (option)
Power supply: 24V/3A
Duty cycle (environment temp. at 40°C): 280A@60%; 230A@100%
Motor speed: 1-20m/min
Dimensions (LxWxH): 60 x 26 x 51.5 cm
Weight: 18kg
Voltage positions switch: 14
No-load voltage: 17/41.5 V
Protection level: IP 21
Dimensions (L x w x h): 89 x 49 x 88 cm
Weight: 105kg
Standard: IEC 60974-1/10 A
Original equipment (roller): 1.0/1.2 - B (Steel, inox)
2. Air Cooled Wire Feeder: TF-4RN: 061699
3. Roller type B (x2) - Ø1.0 / 1.2 steel/ inox
4. Earth clamp with cable 400 A 4 m/50 mm² - 047853
5. Connection cable 5m- 034839
6. Torch MIG/MAG GRIP- steel 350A-4M: 040946
