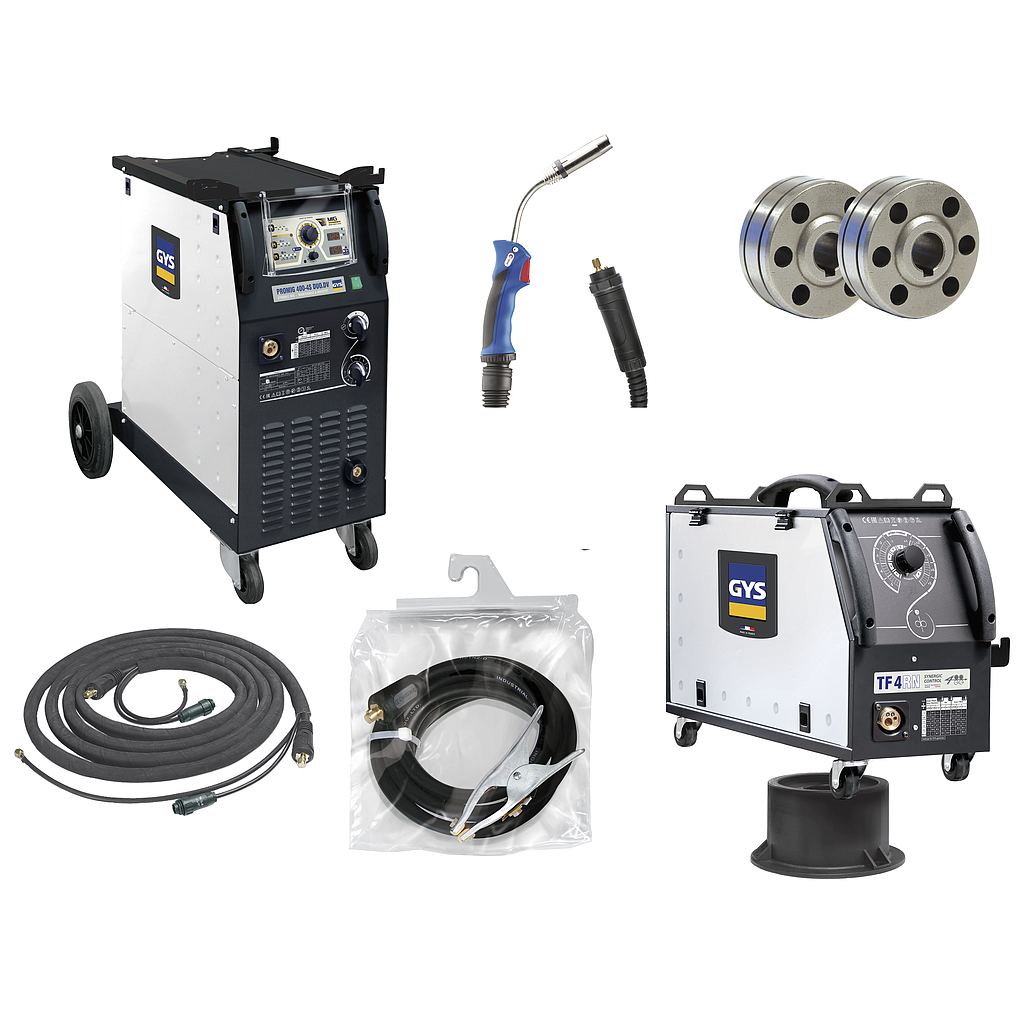

STANDARD DELIVERY:
1. PROMIG 400-4S DUO DV
Three phase «Synergic» 350 Amp MIG welder with 4 drive rollers. Ideal for maintenance and industrial production work. Increase productivity - With two individual wire feeders it enables two different wire types/sizes are fitted at the same time thus avoiding time consuming wire and gas bottle changes.
SIMPLIFY YOUR WORK:
2 wire feeders: One located inside the power generator and one inside the separate wire feed unit with a 10 m connection cable.
2 torches: Automatic selection of the internal or external wire feeder and welding para meters (including gas type) upon pressing the trigger.
2 gas controls: Two solenoid valves enable different gas types to be selected just by pressing the trigger e.g Argon for aluminium used with the main machine and Argon/CO2 for steel on the separate wire feed unit.
2x faster : Eliminates the need to change MIG tips, drive rollers, torch liner and MIG wire reels when changing jobs.
2x more versatile: One machine can be setup to weld Steel/Aluminium, Steel/ Stainless or Aluminium/Stainless.
2 MODES : SYNERGIC OR MANUAL
GYS experience integrated in more than 1000 parameters managed by microprocessor.
- Synergic mode : Optimum results without adjusting the wire speed :
• Select wire type
• Select wire size
• Select the power (refer to table on the front of the machine)
- Manual mode : Manual adjustement option of the wire speed and power
Specifications:
Power supply: 230 V/400 V, 3 ph, 50/60 Hz
Fuse: 16A (230V) / 25A (400V)
Rate current output: 40-350 A
Duty cycle (environment temp. at 40°C):
350 A / 31.5 V @ 35%
270 A / 27.5 V @ 60%
220 A / 25 V @ 100%
Motor speed: 1 - 20 m/min- 4 rollers (2 motors)
Intergrated wire feeder: TF-4RN (option)
Supported wire reels: Ø200-300 mm
Wire diameter:
Cored wire: 0.9 - 1.6 mm
Steel, inox: 0.8 - 1.2 mm
Aluminum: 1.0 - 1.2 mm
Voltage positions switch: 14
No-load voltage: 17/41.5 V
Protection level: IP 21
Dimensions (L x w x h): 89 x 49 x 88 cm
Weight: 109 kg
Standard: IEC 60974-1/5/10 A
Original equipment (roller): 1.0/1.2 - B (Steel, inox)
2. Air Cooled Wire Feeder: TF-4RN: 061699
3. Roller type B (x2) - Ø1.0 / 1.2 steel/ inox
4. Roller type B Ø1.0/1.2 - aluminum - 040915
5. Earth clamp with cable 400 A 4 m/50 mm² - 047853
6. Connection cable 10m - 034860
7. Torch MIG/MAG GRIP- steel (350A-4m): 040946
8. Torch MIG/MAG GRIP- aluminum (350A-3m): 040731
