GYS PROGYS 280 MAG 2 PACK ຊຸດເຄື່ອງເຊື່ອມ MMA ແລະ MIG/MAG (1-3ph; 230/400V; 280A; Trolley)

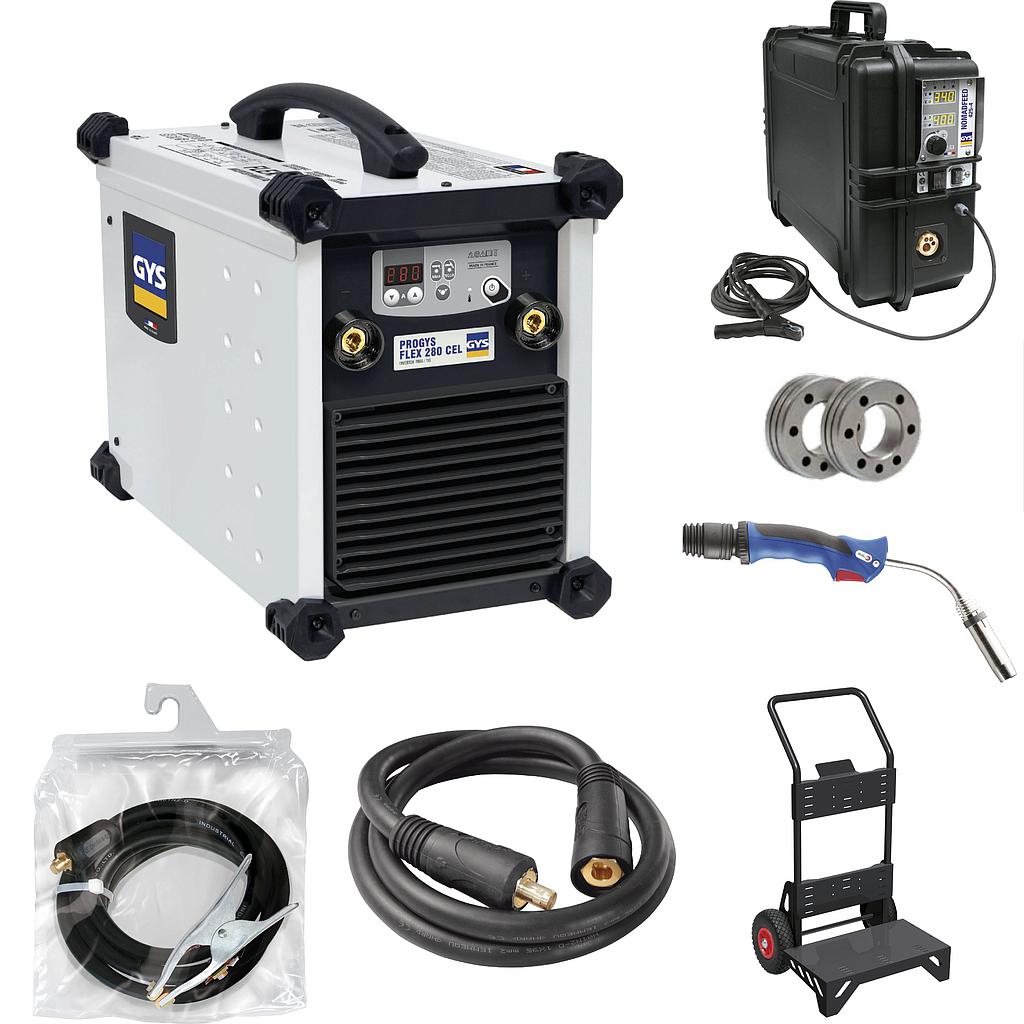

STANDARD DELIVERY:
1. PROGYS FLEX 280 CEL - 013544
The FLEX 280 A CEL is an extremly versatile MMA Inverter welding machine capable of working on both single phase (110V & 240V) and 3 phase (415V) power supplies. The unit automatically manages the input power supply to produce a high quality arc condition. The robust build and IP23 protection rating makes it ideal for outside work in tough conditions.
High performance
• High duty cycle makes it ideal for industry applications.
• Capable of welding 1.6mm to 5mm electrodes.
• Features Secondary Regulation to maintain a stable arc.
Easy to set-up
• Switch from MMA to TIG by just pressing one button.
• Quick & precise adjustment of the welding current with two buttons.
• TIG lift : automatic arc release.
• Can be used with Tungsten electrodes from ø 1.6 to 2.4 mm.
• MMA Pulse : Developed for pipe welding as well as vertical up welding.
Cellulosic
• The FLEX 280 CEL has an open circuit voltage of 100V (cellulosic electrodes require an open circuit voltage of 90V).
• The high penetration given by this type of electrode makes it suitable for use in a number of applications including pipe welding and ship building.
Anti-dust ventilation corridor
• Allows cooling air to pass through the machine without coming into contact with the electronic circuit boards, protecting them from premature failure.
• Ideal for use in industrial environments
Specifications:
Power supply: 230/400 V, 1 ph/3 ph, 50/60 Hz
Fuse: 16 A (230/400 V); 20 A (230 V)
Normal current output (MMA): 5-200 A (230 V); 5-280 A (400 V)
Normal current output (TIG): 5-200 A (230 V); 5-280 A (400 V)
Maximum welding current: 280 A
No-load voltage: 100 V
Duty cycle (environment temperature at 40°C):
- 230V/1 ph:
MMA (20 A):
200 A/28 V @ 40%
180 A/27.2 V @ 60%
150 A/26 V @ 100%
TIG (20 A)
200 A/18 V @ 60%
180 A/17.2 V @ 100%
- 230V/3 ph:
MMA (20 A)
200 A/28 V @ 55%
190 A/27.6 V @ 60%
170 A/26.8 V @ 100%
TIG (16 A)
200 A/18 V @ 60%
200 A/18 V @ 100%
- 400 V / 1 ph:
MMA (16 A)
280 A/31.2 V @ 40%
220 A/28.8 V @ 60%
200 A/28 V @ 100%
TIG (16 A)
280 A/21.2 V @ 65%
250 A/20 V @ 60%
220 A/18.8 V @ 100%
- 400 V / 3 ph:
MMA (16 A)
280 A/31.2 V @ 35%
200 A/28 V @ 60%
170 A/26.8 V @ 100%
TIG (16 A)
280 A/21.2 V @ 45%
225 A/19 V @ 60%
180 A/17.2 V @ 100%
Dimensions (L x w x h): 47x43x26 cm
Weight: 23kg
Protection class: IP23
Standard: IEC 60974-1/10 A
2. Separate wire feeder NOMADFEED- 036291
3. MIG torch grip 350a - 4 m- 040946
4. Earth cable 400 A 4 m / 50 mm²- 047853
5. NOMADFEED cable 5 m / 95 mm²- 032439
6. Roller Type C - Ø 1 / 1.2
