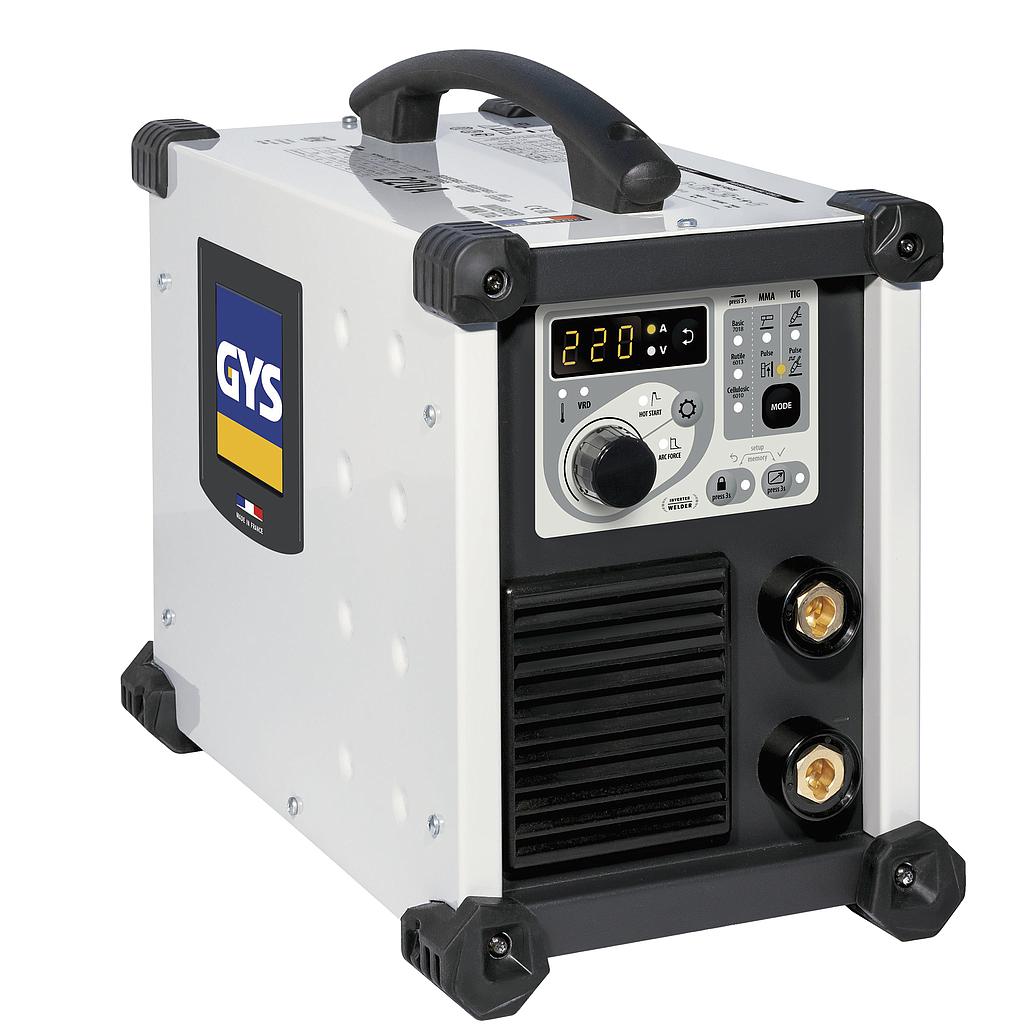

Designed for the most demanding industry professionals, the PROGYS 220E FV CEL blends the latest welding technology with an intuitive user interface. Its innovative ignition process allows the user to vertical-up and vertical-down weld very reliably with all types of electrodes up to Ø 5 mm, including cellulosic and aluminium-coated electrodes.
FOUR SPECIALIST WELDING MODES:
- MMA: Weld all rutile, basic, stainless steel, cast iron, aluminium and cellulosic electrodes up to Ø 5 mm.
- Pulsed MMA: The ideal mode for vertical-up welding (for pipes and pipelines).
Adjustable frequency and cold-current percentage.
- DC TIG: Featuring Lift-Arc ignition (with electrodes between Ø 1.6 - 3.2 mm).
- Pulsed TIG: Controls the metal’s melting temperature and enables the welding of sheet metal from 0.3 mm thick.
USER PROTECTION
- A VRD (Voltage Reduction Device) can be turned on to reduce the no-load output voltage < 35 V.
- Lockable keypad prevents operating errors.
RESILIENT
- Reinforced casing and anti-shock pads on all sides.
- IP23 protection level for outdoor use.- PROTEC 400 technology protects against overvoltages up to 400 V
Specifications:
Power supply: 230 V, 1 ph, 50/60 Hz
Fuse: 16-32 A
Normal current output (MMA): 5-220 A
Normal current output (TIG): 5-220 A
Maximum welding current: 220 A
No-load voltage: 77.5 V (< 24 V VRD activated)
Duty cycle (environment temperature at 40°C):
- MMA (230 V / 16 A):
220 A/28.8 V @ 22%
145 A/25.8 V @ 60%
120 A/24.8 V @ 100%
- MMA (230 V / 32 A)
220 A/28.8 V @ 25%
175 A/27 V @ 60%
145 A/25.8 V @ 100%
- TIG (230 V / 16 A)
220 A/18.8 V @ 45%
200 A/18 V @ 60%
160 A/16.4 V @ 100%
- TIG (230 V / 32 A)
220 A/18.8 V @ 50%
215 A/18.6 V @ 60%
200 A/18 V @ 100%
Dimensions (L x w x h): 40.5x34x21.5 cm
Weight: 12 kg
Protection class: IP23
Standard: IEC 60974-1/10 A
Optional Accessories:
- MMA Kit 200 A - 3 m - 25 mm²- 047402
- TIG Torch Valve SR17V - 4 m- 044401
- Manual Remote Control RC-HA1 - 8 m (MMA/TIG)- 045675
- Remote Control Foot RC-FA1 - 4 m (MMA/TIG)- 045682
Choose optional accessories when ordering
