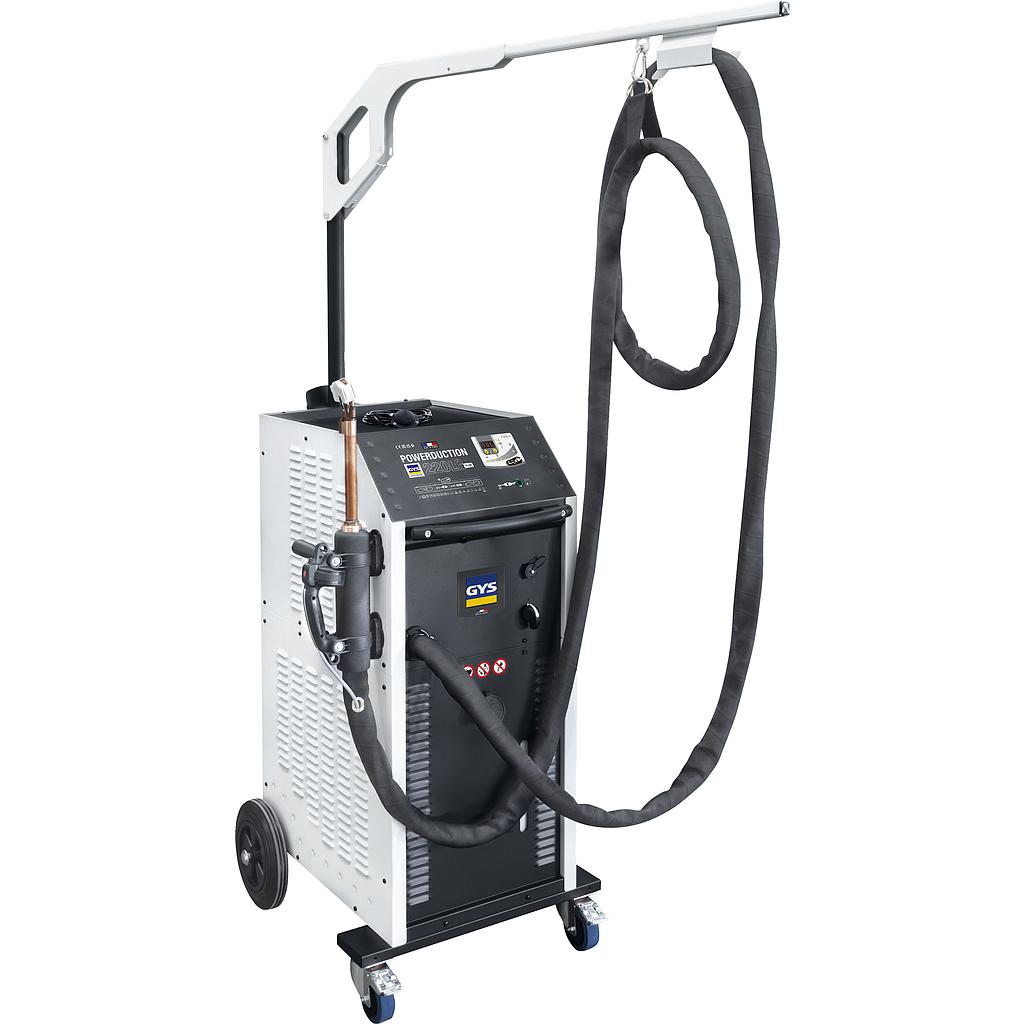

POWERDUCTION 220LG supplies an instant heating power to unseize, and to heat up steel or aluminium. Flameless, its heating is accurate, instantaneous and safe for the working environment. Thanks to its liquidcooling, it can work continuously at its maximum power of 22kW. Designed for intensive use on 32 A sockets, its productivity and heating quality make it an indispensable ally in industrial environments.
A WIDE RANGE OF APPLICATIONS
• heating and straightening of bent frames (except HLE steel).
• releasing of bolts, steering ball joints without damaging the bellows.
• removing seized cardans in the hub.
• removal of exhaust lines.
• annealing of metal parts
• heating for bending
• brazing
• shrinkage.
GUARANTEED POWER AND TIME SAVING
• Heating power: 22 kW, selectable in 2200 W steps. Heats up the core of the metal and turns red (approx. 800°C):
• Safety and time saving:
Immediate heating without flame on a specific area, it can be used close to cables, pipes, or other heat sensitive part avoidingthe need to disassemble them.
• Easy to use:
6 meter induction cable which allows to work at height or in any places the powerduction cannot fit.
Specifications:
Power supply: 400 V - 3 ph, 50/60 Hz
Rated input current: 32 A
Rated input power: 22000 W
Heating frequency: 20-60 kHz
Coolant: Water (30 L)
Duty cycle (environment temp. 40°C) @ 100%: continuing
Protection class: IP 21
Dimensions (L x w x h): 118 x 80 x 60cm
Weight: 141 kg
Standard: IEC 60335-1
Power supply cable: 6 m
Included accessories: Adaptors 32L and Inductors L20/B4
