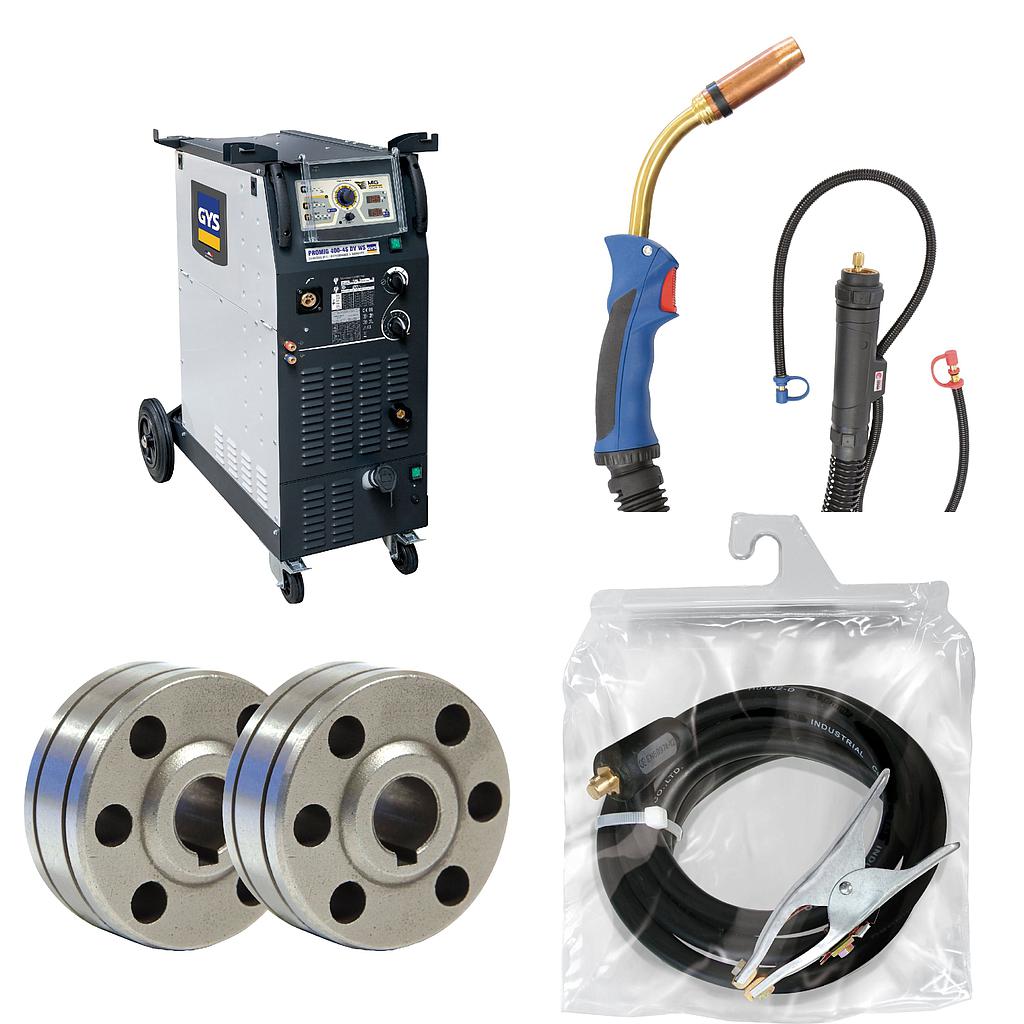

STANDARD DELIVERY:
1. PROMIG 400-4S DV DW
The PROMIG 400-4S DV DW is a synergic three-phase MIG/MAG generator with liquid cooling. It is ideal for industrial production workshops working with steel, stainless steel and aluminium. Its intuitive interface and integrated cooling unit offer manufacturers maximum productivity.
MIG / MAG WELDING
- Steel and stainless steel wire: Ø 0.8 to 1.2 mm
- Aluminium wire: Ø 0.8 to 1.2 mm
3 WORKING MODES
- Choice of torch trigger modes: 2T or 4T.
- Tack option: SPOT.
MANUAL & SYNERGIC
Over 1000 preprogrammed parameters for best welding results.
- Synergic function: No need to adjust the wire speed.
Simply select the wire diameter, wire type and power.
The PROMIG generator determines for you:
• Optimal wire speed
• Post gas
• Burnback
- Manual function: Manual adjustment of the yarn speed and power
INTEGRATED WIRE FEEDER
• Compatible wire reels: Ø 200 / 300 mm.
• Powerful 4 roller motorized wire-feeder for an efficient wire feeding.
• EURO torch connector for quick assembly/disassembly.
MAXIMUM PRODUCTIVITY
• Compatible with air and water cooled torches.
• Displays current/voltage during and after welding (WPS/PQR).
• Support for gas cylinder up to 10 m³ (50l).
• Large reinforced wheels combining stability and maneuverability.
Specifications:
Power supply: 230 V/400 V, 3 ph, 50/60 Hz
Fuse: 25A (230V) / 16A (400V)
Rate current output: 40-350 A
Duty cycle (environment temp. at 40°C):
350 A / 31.5 V @ 35%
270 A / 27.5 V @ 60%
220 A / 25 V @ 100%
Motor speed: 1 - 20 m/min- 4 rollers (2 motors)
Built-in cooling unit: 5.5 L
Supported wire reels: Ø200-300 mm
Wire diameter:
Steel, inox: 0.8 - 1.2 mm
Aluminum: 1.0 - 1.2 mm
Voltage positions switch: 14
No-load voltage: 17-41.5V
Protection level: IP 21
Dimensions (L x w x h): 89 x 49 x 106 cm
Weight: 127 kg
Standard: IEC 60974-1/5/10 A
Original equipment (roller): 1.0/1.2 - B (Steel, inox)
2. Roller type B (x2) - Ø1.0 / 1.2 steel/ inox
3. Earth clamp with cable 400 A 4 m/50 mm² - 047853
4. Torch MIG/MAG GRIP- steel (500A- 4m): 041004
