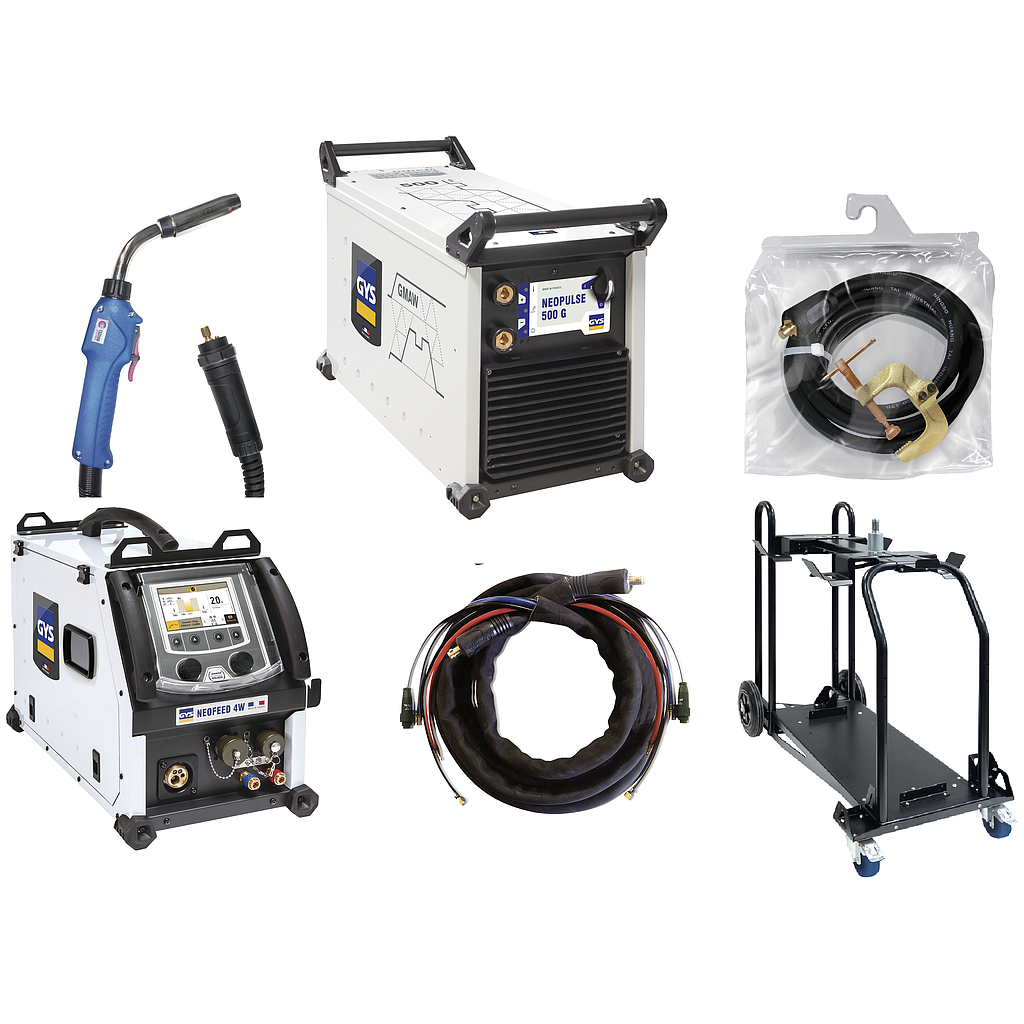

STANDARD DELIVERY:
1. NEOPULSE 500 G
Digital technology, the NEOPULSE 500 G is a pulsed MIG/MAG welding power source with a separate wire feeder. Ultra high performance and designed for the highest performance level using the latest technology, it features +100 synergic curves and exceptional arc quality/performances. Intuitive and highly functional, its digital interface allows you to change welding parameters with ease. Equipped with its NEOFEED-4W reel (optional), this welding power source provides productivity and quality of unmatched welding on all types of alloys.
MULTI-PROCESS WELDING
+ MIG/MAG :
- steel and stainless steel wire: Ø 0.6 to 1.6 mm
- aluminium wire: Ø 0.8 to 1.6 mm
- CuSi and CuAl wire: Ø 0.8 to 1.2 mm
+ MMA DC / Pulse : basic, rutile and cellulosic electrodes (up to Ø 6 mm)
+ TIG DC Lift / Pulse.
SMART
- SYNERGIC mode : Select the material/gas type and wire diameter, now the NEOPULSE
automatically determines the optimal welding conditions and allows you to adjust the settings
(wire feed speed, voltage, current, arc length).
ACCURATE
+ Calibration of welding accessories, to adjust the displayed voltage measurement and the energy calculation.
+ Energy, display and energy calculation after welding according to EN1011-1, ISO / TR 18491 and QW-409.
+ Portability : load / save as, JOBS from a USB key as well as the machine configuration.
+ Traceability : trace / record all welding steps, weld by weld, during industrial manufacturing according to EN ISO 3834.
OPTIMISED MIG/MAG SETTINGS
+ Welding processes : Manual, Dynamic STD, Pulsed, Modul Arc (variation of hot / cold current)
+ TACK modes : SPOT and DELAY.
+ Trigger management : 2T and 4T.
+ Precise control over the welding cycle : CreepSpeed, Softstart, Hotstart, Upslope, Downslope, Crater Filler, Postgas, etc
Specifications:
Power supply voltage: 3ph, 400 V +/- 15%
Mains protection (delayed): 32 A
Duty cycle factor (10 min/40°C):
- 50%:
MIG-MAG, MMA, TIG: 470 A
- 100%:
MIG-MAG: 440 A
MMA: 430 A
TIG: 450 A
Current range (MIG-MAG / MMA / TIG): 10 - 500 A
No load voltage: 85 V
Charging voltage:
MIG-MAG: 14.5 - 39 V
MMA: 20.4 - 40 V
TIG: 10.4 - 30 V
Max. efficiency: 90 %
No-load consumption:
MIG-MAG, TIG: 37 W
MMA: 157 W
Protection class: IP23
Dimensions: 680 x 300 x 420 mm
Weight: 29 kg
2. Wire Feeder NEOFEED-4W- 014527
3. MIG INVERTER Connection cable 10 m, air Ø 95 mm², 047600
4. Roller type F (x4): original equipment Ø 1.0/1.2 steel/ stainless steel
5. Earth cable 800A 95 mm²- 043013
6. Trolley 037328
7. Torch MIG/MAG GRIP Steel 450 A - 4m, air, 045932
