GYS MULTIWELD 320T PACK ຊຸດເຄື່ອງເຊື່ອມ MMA, MIG/MAG (3ph; 400V; 320A MIG/MAG; 300A MMA)

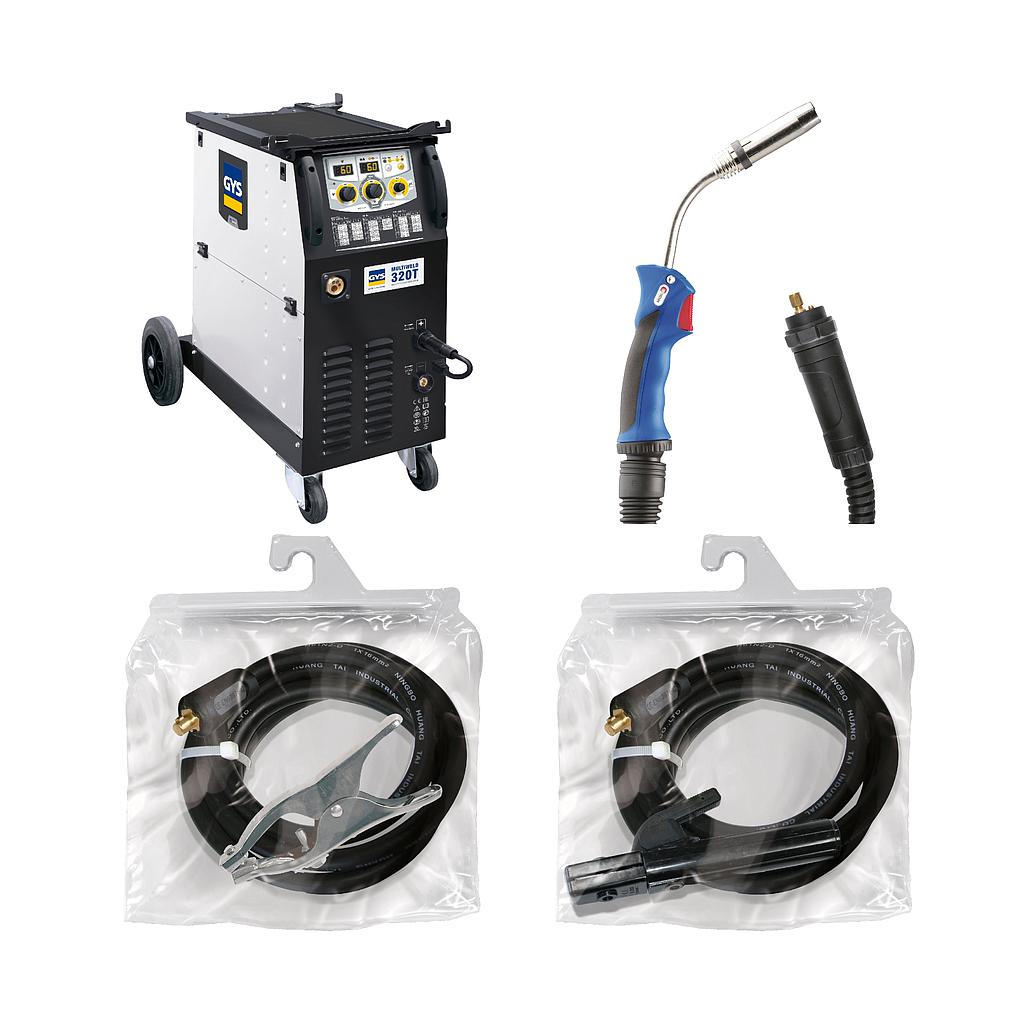

STANDARD DELIVERY:
1. MULTIWELD 320T
The MULTIWELD 320T is a semi automatic tri-phase welding machine, combining MIG/MAG, cored wire and MMA welding processes. Its intuitive interface integrates digital displays for easy and precise adjustment. Fitted with a powerful and precise 4 drive roll feeding system, the MULTIWELD 320T is perfect for welding Ø 1.2 mm wire without difficulty. Its welding performance is impeccable even when using aluminum.
MULTIPROCESS:
+ MIG/MAG welding :
- Steel wire: Ø 0.6 to 1.2 mm
- Stainless steel wire: Ø 0.8 to 1.2 mm
- Aluminium wire: Ø 0.8 and 1.0 mm
- Cored wire (reverse polarity): Ø 0.9 to 1.2 mm
+ MMA welding: basic and rutile electrodes (up to Ø 6 mm).
OPTIMISED MIG/MAG SETTINGS
+ Choice of the trigger mode: 2T or 4T.
+ Welding guide: tables assist the user to adjust and fine tune the voltage and the diameter of the filler wire according to the thickness of material being welded.
INTUITIVE
+ Display readable even in bright light.
+ Simple user interface with ergonomic controls allowing gloved use.
INTEGRATED WIRE FEEDER
+ Compatible with reels : Ø 200 / 300 mm
+ Wire feeder with 4 rollers for an efficient wire feeding.
+ EURO torch connector for quick assembly/disassembly.
PRE-HEATING, PURE CO2
+ Pre-installed socket (36 V - 4.2 A) for gas heater in pure CO2 welding (heater not included).
+ Compatible with US (type A) and EURO electrical sockets (type C/E/F).
STURDY
+ Reinforced structure.
+ Reinforced wheels for better stability and movement.
+ Support for gas cyliner up to 4 m³.
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 16 A
Normal current output (MIG/MAG): 40-320 A
Normal current output (MMA): 40-300 A
Duty cycle (environment temp. at 40°C):
- MIG/MAG:
Imax 320 A @ 30%
@ 60%: 240 A / 26 V
@ 100%: 200 A / 24 V
- MMA:
Imax 300 A @ 30%
@ 60%: 220 A / 28.8 V
@ 100%: 180 A / 27.2 V
Motor speed: 3 - 18 m/min, 4 rollers (2 motor)
Supported wire reels: Ø200-300 mm
Wire diameter:
+ Steel: 0.6 - 1.2 mm
+ Inox: 0.8 - 1.2 mm
+ Aluminum: 0.8 - 1 mm
+ Cored wire: 0.9 - 1.2 mm
No-load voltage: 64 V
Protection level: IP 21
Dimensions (L x w x h): 77 x 79 x 47 cm
Weight: 44 kg
Standard: IEC 60974-1/5/10 A
Original equipment (roller): 0.8/1.0 - B (steel, inox)
2. MIG Torch Grip 250A - 4 m
3. Electrode holder 4 m
4. Earth clamp 4 m
