GYS MULTIWELD 320T-C PACK ຊຸດເຄື່ອງເຊື່ອມ MMA, MIG/MAG (3ph; 400V; 320A MIG/MAG; 300A MMA)

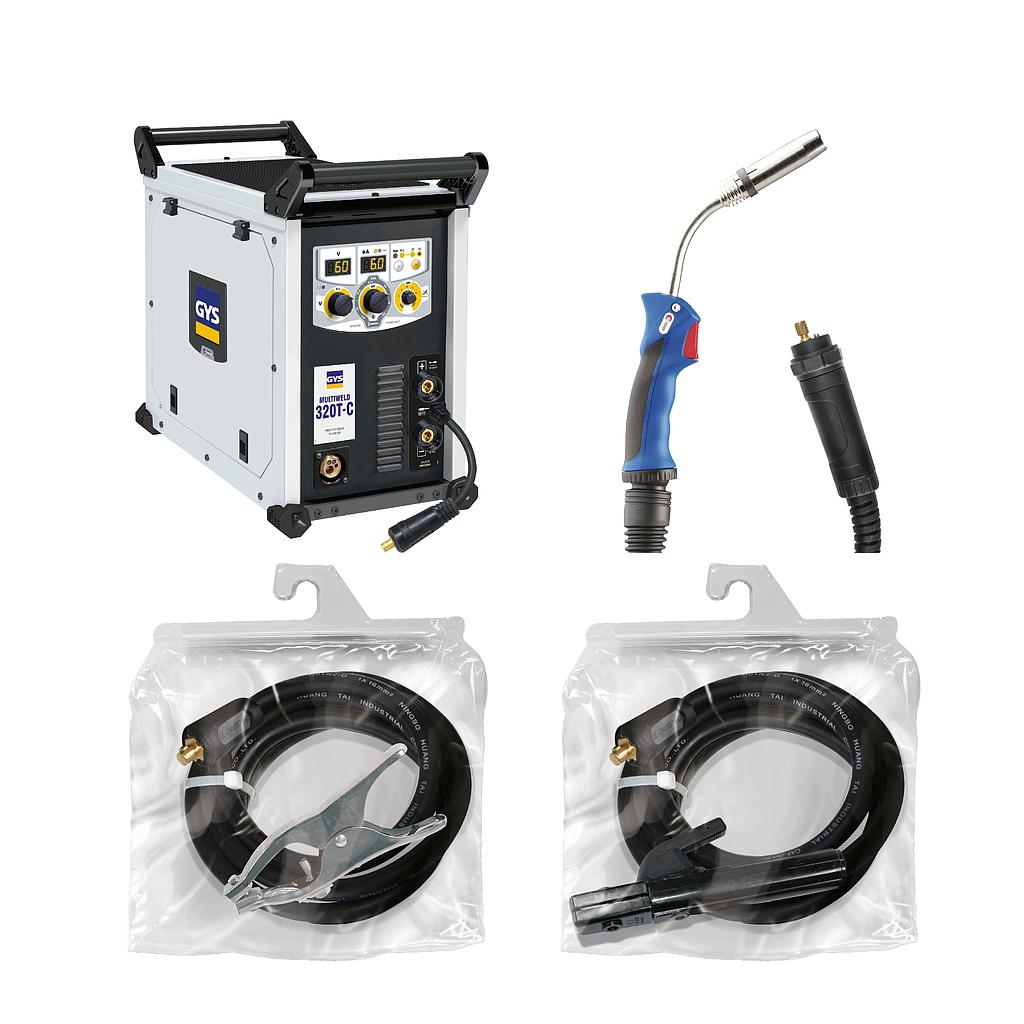

STANDARD DELIVERY:
1. MULTIWELD 320T-C
The MULTIWELD 320T-C is a compact, three-phase welding machine that combines MIG/MAG, flux-cored wire and MMA welding processes. Equipped with a precise and powerful four-roller wire-feed system, the MULTIWELD 320T- C can weld Ø 1.2 mm wire effortlessly. Its reinforced structure, with two handles for lifting and carrying, is perfectly suited for workshops and quick on-site repairs.
MULTI-PROCESS MACHINE
MIG/MAG welding:
- steel wire: Ø 0.6 - 1.2 mm
- stainless-steel wire: Ø 0.8 - 1.2 mm
- aluminium wire: Ø 0.8 and 1.0 mm
- flux-cored wire (polarity inversion): Ø 0.9 - 1.2 mm
MMA welding: basic and rutile electrodes (up to Ø 6 mm).
ADVANCED MIG/MAG SETTINGS
- Choice of trigger performance: 2T or 4T
- Welding support chart: a chart on the machine’s side helps the user adjust the tension and diameter of the filler wire according to the thickness of the material being welded.
INTUITIVE
- Display screen can be easily read, even in bright light.
- Easy to alter the settings using the machine’s simple user interface with accessible knobs and buttons suitable for gloved hands.
BUILT-IN WIRE-FEED REEL
- Compatible reels: Ø 200 / 300 mm.
- Powerful, four-roller, motorised wire-feed rollers for efficient unwinding.
- European torch connection for quick assembly/disassembly.
PURE CO2-GAS PREHEATING
- Pre-installed socket (36 V / 4.2 A) for heating gas in pure CO2 welding (heater not included).
- Compatible with US (type A) and EURO (types C/E/F) electrical sockets.
ROBUST
- IP 23 classification for outside use.
- Reinforced structure.
- 2 steel handles for easy manipulation.
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 16 A
Normal current output (MIG/MAG): 40-320 A
Normal current output (MMA): 40-300 A
Duty cycle (environment temp. at 40°C):
- MIG/MAG:
Imax 320 A @ 20%
@ 60%: 200 A / 24 V
@ 100%: 160 A / 22 V
- MMA:
Imax 300 A @ 20%
@ 60%: 180 A / 27.2 V
@ 100%: 140 A / 25.6 V
Motor speed: 3 - 18 m/min, 4 rollers (2 motor)
Supported wire reels: Ø200-300 mm
Wire diameter:
+ Steel: 0.6 - 1.2 mm
+ Inox: 0.8 - 1.2 mm
+ Aluminum: 0.8 - 1 mm
+ Cored wire: 0.9 - 1.2 mm
No-load voltage: 64 V
Protection level: IP 23
Dimensions (L x w x h): 65 x 52 x 34 cm
Weight: 38 kg
Standard: IEC 60974-1/5/10 A
Original equipment (roller): 0.8/1.0 - B (steel, inox)
2. MIG Torch Grip 250A - 4 m
3. Electrode holder 4 m
4. Earth clamp 4 m
