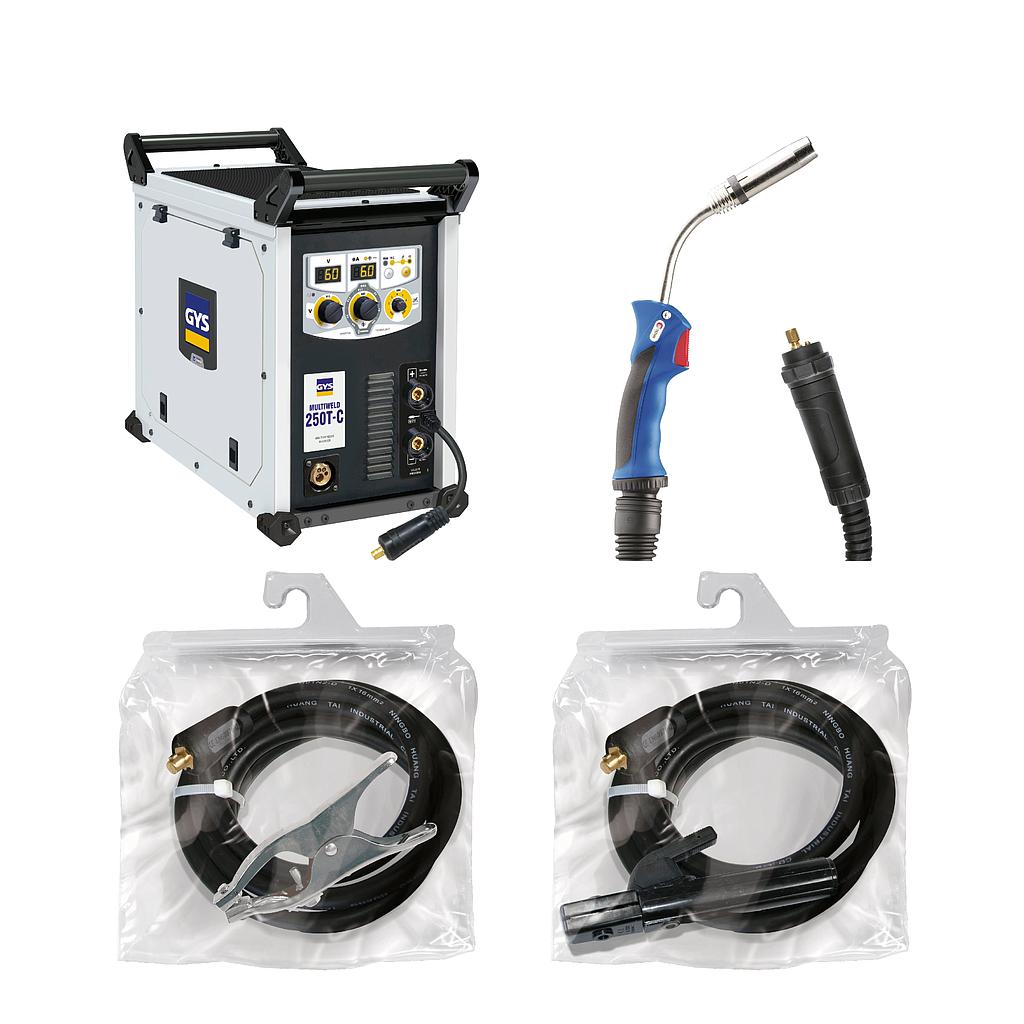

STANDARD DELIVERY:
1. MULTIWELD 250T-C
The MULTIWELD 250T-C is a compact three-phase generator combining MIG/MAG, cored wire and MMA welding processes. Its intuitive interface integrates digital displays for easy and precise settings. With a reinforced structure including 2 handles for lifting and slinging, the MULTIWELD 250T-C is perfectly suited for welding in the workshop and on site use.
MULTIPROCESS:
+ MIG/MAG welding :
- steel wire: Ø 0.6 to 1.2 mm
- stainless steel wire: Ø 0.8 to 1.2 mm
- aluminium wire: Ø 0.8 and 1.0 mm
- cored wire (reverse polarity): Ø 0.9 to 1.2 mm
+ MMA welding: basic and rutile electrodes (up to Ø 5 mm).
OPTIMISED MIG/MAG SETTINGS
+ Choice of the trigger mode: 2T or 4T.
+ Welding aid: table on the side of the generator to help the user adjust his tension and filler wire diameter according to the thickness of the material to be welded.
INTUITIVE
+ Display readable even in bright light.
+ Simple interface with large buttons and knobs for use with gloved hands.
INTEGRATED WIRE FEEDER
+ Compatible wire reels: Ø 200 / 300 mm.
+ Powerful 2 roller motorized wire-feeder for an efficient wire feeding.
+ EURO torch connector for quick assembly/disassembly.
PRE-HEATING, PURE CO2
+ Pre-installed socket (36 V - 4.2 A) for gas heater in pure CO2 welding (heater not included).
+ Compatible with US (type A) and EURO electrical sockets (type C/E/F).
ROBUST
+ Reinforced structure.
+ 2 steel handles for easy manipulation.
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 16 A
Normal current output (MIG/MAG): 40-250 A
Normal current output (MMA): 40-220 A
Duty cycle (environment temp. at 40°C):
- MIG/MAG:
Imax 250 A @ 20%
@ 60%: 170 A / 22.5 V
@ 100%: 130 A / 20.5 V
- MMA:
Imax 220 A @ 20%
@ 60%: 150 A / 26 V
@ 100%: 120 A / 24.8 V
Motor speed: 2 - 15 m/min, 4 rollers (2 motor)
Supported wire reels: Ø200-300 mm
Wire diameter:
+ Steel: 0.6 - 1.2 mm
+ Inox: 0.8 - 1.2 mm
+ Aluminum: 0.8 - 1 mm
+ Cored wire: 0.9 - 1.2 mm
No-load voltage: 59 V
Protection level: IP 21
Dimensions (L x w x h): 58 x 52 x 32 cm
Weight: 32 kg
Standard: IEC 60974-1/5/10 A
Original equipment (roller): 0.8/1.0 - A (steel, inox)
2. MIG Torch Grip 250A - 4 m
3. Electrode holder 4 m
4. Earth clamp 4 m
