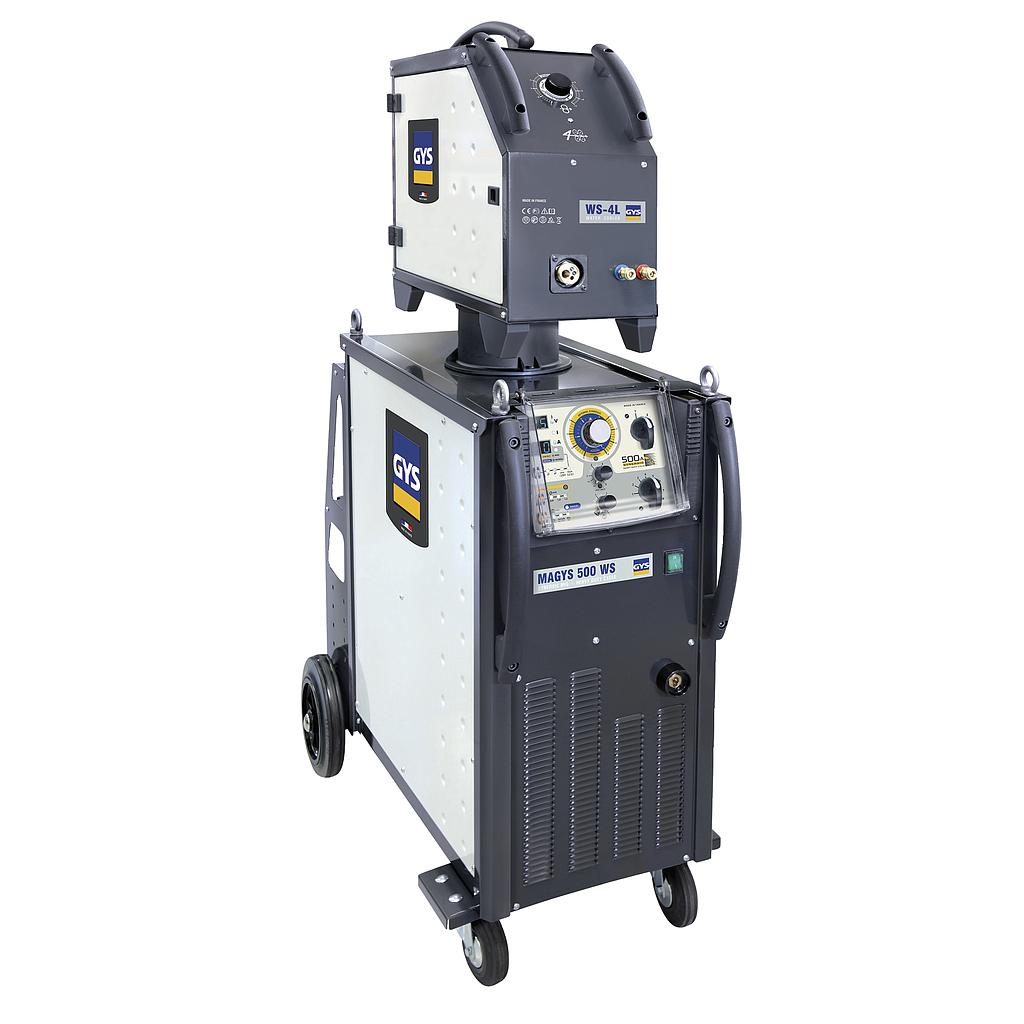

The MAGYS 500 WS with its wire feeder is a “synergic” 3-Phase MIG/MAG with water cooled system. Its heavy duty design and high duty cycle make it ideal for industrial environments welding steel, stainless-steel and aluminium 95mm2 connection cable in 5 or 10 meters, are especially made for intensive work up to ø1.6.
4 MODES:
- 2T / 4T
- Spot: Welding with adjustable spot diameter
- Delay: Intermittent welding mode
SYNERGIC OR MANUAL
More than 1000 parameters managed by micro processor.
- Synergic mode: The wire speed parameters can be set up directly and easily for an optimum result by just setting-up:
• The wire type
• The wire diameter
• The power, with its two switches
MAGYS 500 WS will automatically control:
• Optimum wire speed
• The pre-gas / post-gas
• Burn back
- Manual mode: Enables manual control of the wire speed
HEAVY DUTY DESIGN AND ENGINEERING
- Wire feeder and 4 drive rollers
- Robust build to suit industrial requirements
- Gas bottle support up to 10m³ (50l)
- 4 eye bolts for lifting the machine
- Heavy duty reinforced wheels for good mobility
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 25 A
Normal current output: 45-450 A
Duty cycle (environment temp. at 40°C):
350 A / 36.5 V @ 50%
410 A / 34.5 @ 60%
320 A / 30 V @ 100%
Wire feeder WS-4R or W5S-4L (option)
Intergrated cooling unit: 5.5 L
Voltage positions switch: 30
No-load voltage: 18/51 V
Protection level: IP 23
Dimensions (L x w x h): 50 x 105 x 98 cm
Weight: 160 kg
Standard: IEC 60974-1/10 A
Choose optional accessories when ordering
