STANDARD DELIVERY

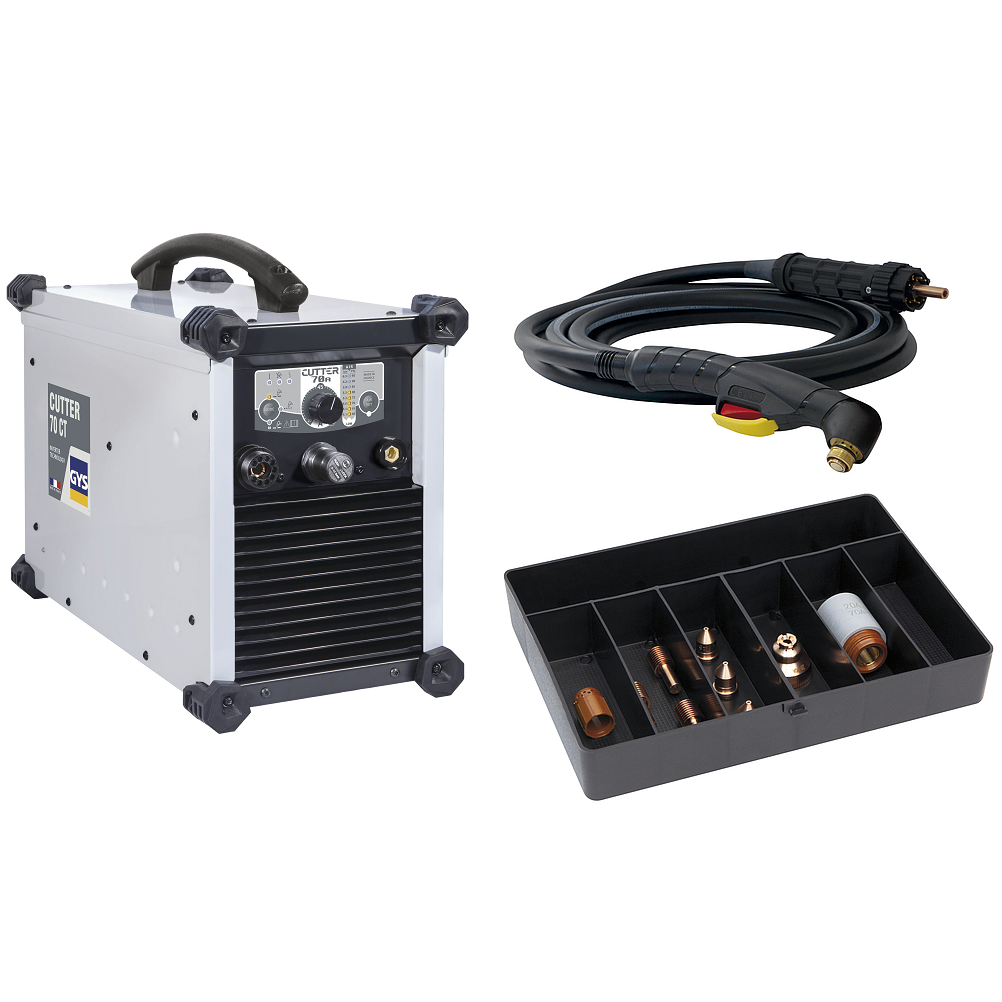

1. CUTTER 70 CT
The CUTTER 70 CT is a 70 A plasma cutter with a cutting capacity of 35 mm thick on a multitude of materials. The HF-free arcing system preserves and increases the lifetime of consumables. Designed to be used in difficult environments, it has very robust mechanics and a user friendly control panel. It is prewired for use on automatic cutting tables.
MAXIMUM PRODUCTIVITY
- Faster cutting speed using oxygas.
- Cuts all types of steel (mild, stainless, tempered, HLE), aluminium, copper, etc.
- Optimised cooling using the ventilation corridor that helps isolate the electronic components from the dust.
- Replacement of consumables is fast & easy for maximum productivity.
- Duty cycle 70 A at 60 % (40°C)
HIGH-PERFORMANCE TORCH
- Premium torch TECMO® (leading supplier in Europe).
- Premium cutting quality : the torch is air cooled offering a great arc stability for all types of work.
- Consumables compatible with Hypertherm®.
- Designed to be shock and heat resistant.
- Quick connect/disconnection of the torch, no tools required for transport or maintenance.
- Easy to use trigger mechanism for added comfort.
EFFECTIVE IN EVERY WORKPLACE
- User friendly interface :
+ 3 working modes : Cutting / Mesh / locked
+ manual setting of the air pressure (4.1 < 6.5 bars) using front LED Indicator.
- HF-free ignition to prevent disturbances that could interfere with nearby electronic equipment.
- Compatible with CNC kit for automatic cutting tables.
DESIGNED TO LAST
- Reinforced metal case & non slip rubber pads.
- IP 23 protection rated.
- Compact and Portable
Specifications:
Power supply: 400 V, 3 ph, 50/60 Hz
Fuse: 16 A
Normal current output: 20-70 A
Duty cycle (environment temp. 40°C)
- Cutting:
@ 60%: 70 A / 108 V
@ 100%: 55 A / 102 V
- Gouging:
Imax: 70 A @ 50%
@ 60%: 60 A / 124 V
@ 100%: 45 A / 118 V
No-load voltage: 320 V
Recommended air flow rate: 270 L/min
Recommended air pressure: 5 > 9 bar
Protection class: IP 23
Power generator: > 16 kW
Dimensions (L x w x h): 52 x 40 x 26 cm
Weight: 22 kg
Standard IEC 60974-1/10 A
Recommended manual cutter: MT-70
2. Connections 8mm, 10mm
3. Earth cable 4 m, 10mm²
4. Manual torch MT-70, 12 m- 037519
5. Consumables kit- 037540 (bao gồm: 1x diffuser, 3xelectrode, 3xtips, 1xnozzle, 1xdeflector)
