STANDARD DELIVERY

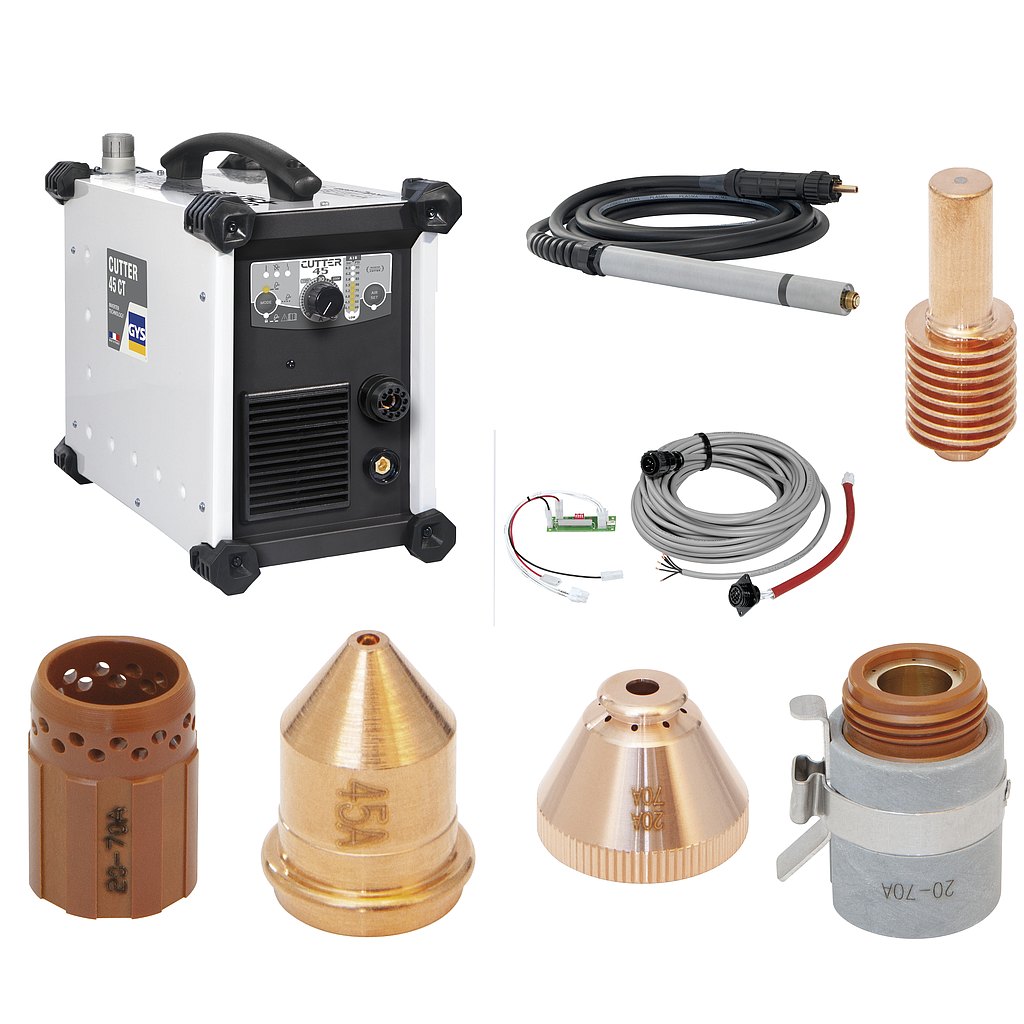

1. CUTTER 45 CT
The CUTTER 45 CT is a 45 A plasma cutter with a clean cutting capacity of 20 mm thick on a wide range of materials thanks to the MT/AT 40 torch range. The HF-free arcing system preserves and increases the lifetime of consumables. Designed to be used in difficult environments, it has a very robust mechanics and a user friendly control panel. It is pre-wired for use on automatic cutting tables.
MAXIMUM PRODUCTIVITY
■ Faster cutting speed than using oxygas
■ Cuts all types of steel (mild, stainless, tempered, HLE), aluminium, copper, etc.
■ Optimised cooling using the ventilation corridor that helps insulating the electronic components from the dust.
■ Consumables setting up is easy for maximum productivity.
■ Duty cycle 41 A at 60 % (40°C)
- Flexible Voltage Hose (85 to 265V), accepts very long network connections (100 m).
- PFC technology, the electrical network is betterexploited and allows an energy saving of 30%
TORCH RANGE MT 70 / AT 70 (6/12 m)
■ User friendly interface :
- 3 working modes : plain metal sheet / open metal sheet / locked
- manual setting of the air pressure using front screen chart.
■ HF-free ignition to prevent disturbances that could damage nearby electronic equipment.
■ Compatible with CNC kit for automatic cutting tables.
■ Disconnectable earth cable for easy storage and simple replacement
DESIGNED TO LAST
■ Reinforced metal case & non slip rubber pads.
■ IP 23 certified for external use.
■ Compact & portable
Specifications:
Power supply: 230 V, 1 ph, 50/60 Hz
Fuse: 16 A
Normal current output: 15-45 A
Duty cycle (environment temp. 40°C):
Imax: 45 A @ 50%
@ 60%: 41 A / 96.4 V
@ 100%: 32 A / 92.8 V
No load voltage: 320 V
Recommended air flow rate: 115 L/min
Recommended air pressure: 5 > 7 bar
Protection class: IP 23
Power generator: > 10.5 kW
Dimensions (L x w x h): 48 x 37 x 23 cm
Weight: 15 kg
Standard IEC: 60974-1/10 A
Recommended manual torch: MT-70 or TPT 40
2. Connections 8mm, 10mm
3. Earth cable 2 m, 10mm²
4. Automatic torch AT-70, 12 m- 037533
5. CNC kit Analog 039988
6. 1x diffuser
7. 5x electrode
8. 5x tips
9. 1x nozzle
10. 1x deflector
