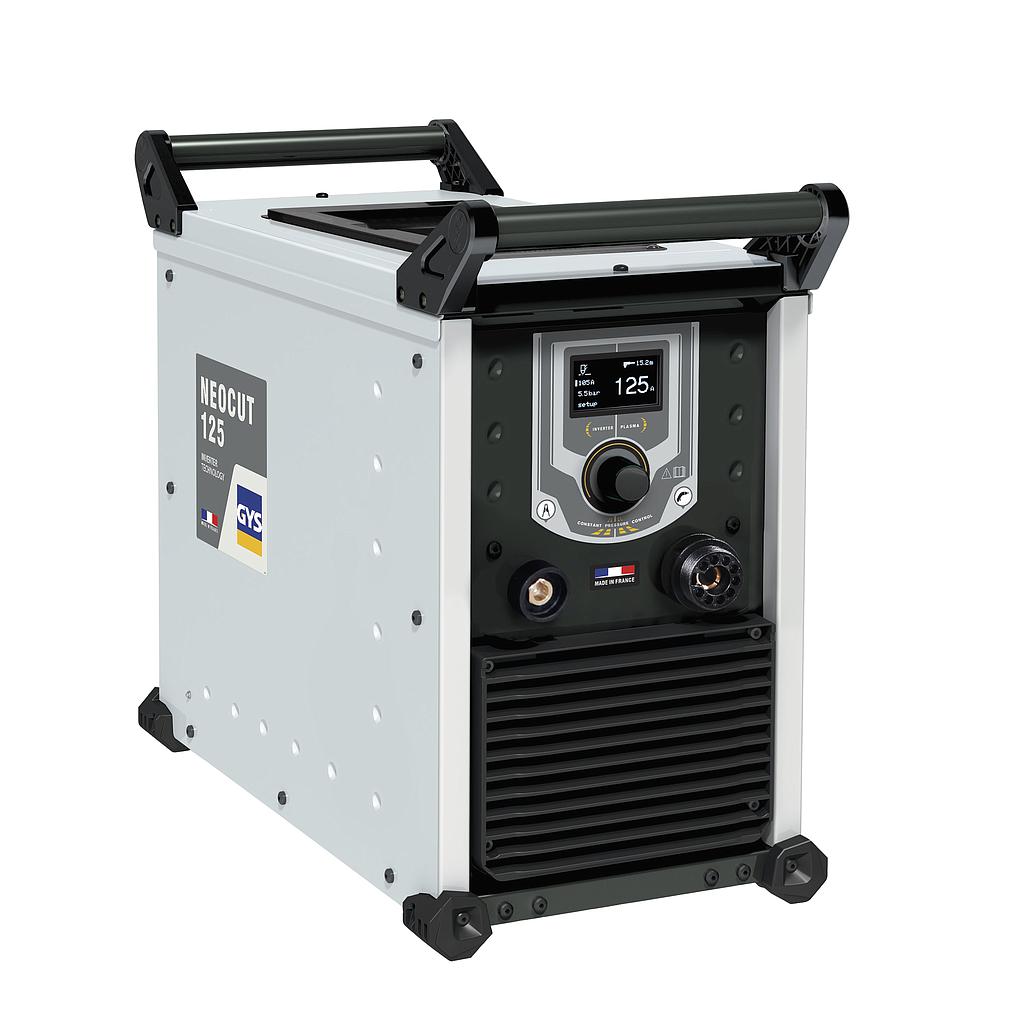

The NEOCUT 125 is a plasma cutter with a duty cycle of 100% at 125 A for cutting work up to 57 mm thick in industrial environment It is equipped with an automatic air pressure management, in all modes, offering an optimum cutting quality throughout the lifespan of the consumables. Also connectable to a cutting table, its «Marking» mode is perfect for tracing and identifying parts.
SYNERGIC AIR PRESSURE
■ Automatic management of pressure and air flow independent of the torch length and the operating mode (cutting, gouging and marking)
■ Optimised consumable lifespan
MAXIMUM PRODUCTIVITY
■ Duty cycle 100% at 125 A (40°C).
■ Marking mode, ideal for tracing and identifying parts.
■ Cuts most materials (mild, stainless, tempered, HLE), aluminium, copper, etc.
■ Optimized cooling design to operate in an industrial environment.
■ Connectable through one of the 3 optional CNC kits for use on automated cutting table.
■ Reinforced case IP 23
SIMPLE TO USE
■ Ergonomic interface with OLED screen (7 languages).
■ 6 working modes: Cutting, Cutting with locked trigger, Gouging, Gouging with locked trigger, Cutting of perforated sheets, Marking.
■ Counter to follow the wear of the consumables (nozzle and electrode).
■ Pneumatic diagnosis (moisture presence test and air pressure control).
■ HF-free arc ignition to prevent disturbances that could damage nearby electronic equipment.
■ Simplified software update via USB cable without any tools or disassembly.
HIGH-PERFORMANCE TORCH
■ Premium torches available in 2 lengths (6 m / 12 m), 2 types (manual / automatic) and 2 powers for automated cutting (125 A / 160 A).
■ Large choice of consumables adapted to all metal thicknesses.
■ Designed to be shock and heat resistant.
■ Quick connection/disconnection of the torch, without tools required for transport or maintenance.
■ Easy to use trigger mechanism for more comfort.
Specifications:
Power supply: 400 V - 3 ph, 50/60 Hz
Fuse: 63 A
Normal current output: 20-125 A
Duty cycle (environment temp. 40°C)
- Cutting:
@ 100%: 125 A / 130 V
- Gouging:
@ 100%: 125 A / 150 V
No-load voltage: 356 V
Recommended air flow rate: 305 L/min (manual cutting)
Recommended air pressure: 5 > 9 bar
Protection class: IP 23
Power generator: > 30 kW
Dimensions (L x w x h): 69 x 40 x 61 cm
Weight: 36 kg
Standard: IEC 60974-1/10 A
Recommended manual cutter: MT-125
Included accessories: Earth cable, 4 m
