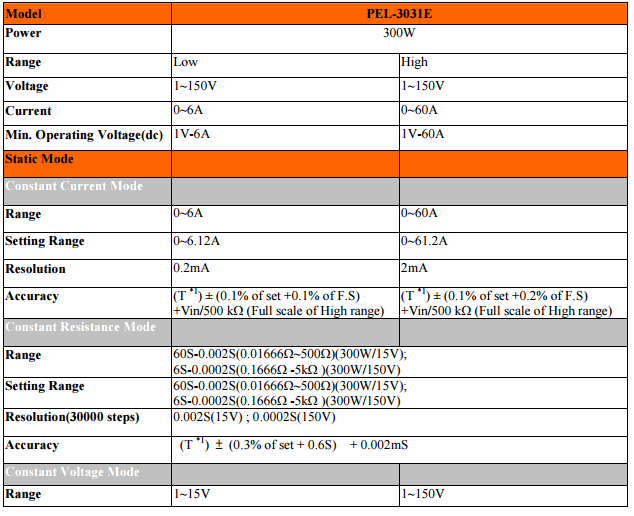

Power 300W
Range Low High
Voltage 1~150V 1~150V
Current 0~6A 0~60A
Min. Operating Voltage(dc) 1V-6A 1V-60A
Static Mode
Constant Current Mode
Range 0~6A 0~60A
Setting Range 0~6.12A 0~61.2A
Resolution 0.2mA 2mA
Accuracy (T *1) ± (0.1% of set +0.1% of F.S)
+Vin/500 kΩ (Full scale of High range)
(T *1) ± (0.1% of set +0.2% of F.S)
+Vin/500 kΩ (Full scale of High range)
Constant Resistance Mode
Range 60S-0.002S(0.01666Ω~500Ω)(300W/15V);
6S-0.0002S(0.1666Ω -5kΩ )(300W/150V)
Setting Range 60S-0.002S(0.01666Ω~500Ω)(300W/15V);
6S-0.0002S(0.1666Ω -5kΩ )(300W/150V)
Resolution(30000 steps) 0.002S(15V) ; 0.0002S(150V)
Accuracy (T *1) ± (0.3% of set + 0.6S) + 0.002mS
Constant Voltage Mode
Range 1~15V 1~150V
Setting Range 0~15.3V 0~153V
Resolution 0.5mV 5mV
Accuracy (T *1)± (0.1% of set + 0.1% of F.S)
(Full scale of Low range)
(T *1)± (0.1% of set + 0.1% of F.S)
(Full scale of High range)
Constant Power Mode
Range 3W-30W(6A) 30W-300W(60A)
Setting Range 0W-30.6W 0W-306W
Resolution 1mW 10mW
Accuracy (T *1)±(0.6 % of set + 1.4 % of f.s (Full scale of H range)) + Vin^2/500 kΩ
Dynamic Mode
General
T1& T2 0.05mS - 30mS / Res : 1uS; 30mS - 30S / Res : 1mS
Accuracy 1uS / 1mS ± 200ppm
Slew Rate (Accuracy 10%) 0.001~0.25A/uS 0.01~2.5A/uS
Slew Rate
Resolution
0.001A/uS 0.01A/uS
Slew Rate Accuracy
of Setting
±(10% + 15us)
* Time to reach from 10% to 90% when the current is varied from 2% to 100%
(20% to 100% in L range) of the rated current.
Constant Current Mode
Current 0~6A 0~60A
Setting range 0~6.12A 0~61.2A
Current Resolution 0.2mA 2mA
Current Accuracy ±0.8% F.S.
Constant Resistance Mode
Range 60S-0.002S(0.01666Ω~500Ω)(300W/15V);
6S-0.0002S(0.1666Ω -5kΩ )(300W/150V)
Setting Range 60S-0.002S(0.01666Ω-500Ω )(300W/15V)
6S-0.0002S(0.1666Ω -5kΩ )(300W/150V)
Resistance Resolution 30000 steps
Resistance Accuracy ±(1%set + 0.6S) + 0.002mS
Measurement
Voltage Readback
Range 0~15V 0~150V
Resolution 0.5mV 5mV
Accuracy (T *1)± (0.1% of rdg + 0.1% of F.S)
(Full scale of Low range)
(T *1)± (0.1% of rdg + 0.1% of F.S)
(Full scale of High range)
Current Readback
Range 0~6A 0~60A
Resolution 0.2mA 2mA
Accuracy (T *1)± (0.1% of rdg + 0.1% of F.S)
(Full scale of High range)
(T *1)± (0.1% of rdg + 0.2% of F.S)
(Full scale of High range)
General
Function
Trigger In/Out terminal
(BNC)
YES
Current momitor output YES
Accessories
Quick Start Guide
User manual /Programming manual CD
Power cord (Region dependent)
Front terminal washers- Spring washer (M6) x2
GTL-105A Remote sense cables, red x1, blackx1
