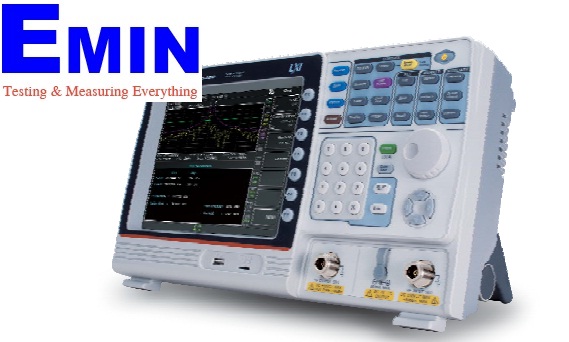

Model: GSP-9300B
Warranty: 12 months
Manufacture: Gwinstek
Range 9 kHz ~ 3 GHz
Resolution 1 Hz
Accuracy ±(period since last adjustment x aging rate) + stability over
temperature + supply voltage stability
Aging Rate ± 1 ppm max.
Frequency Stability Over Temperature ± 0.025 ppm
Supply Voltage Stability ± 0.02 ppm
Start, Stop, Center, Marker ±(marker frequency indication x frequency reference accuracy
+ 10% x RBW + frequency resolution)
Trace Points
Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz
Accuracy ±(marker frequency indication X frequency reference accuracy RBW/Span >=0.02 ; Mkr level to DNL>30 dB
+ counter resolution)
Range 0 Hz (zero span), 100 Hz ~ 3.25 GHz
Resolution 1 Hz
Accuracy ± frequency resolution RBW : Auto
Offset from Carrier
PHASE NOISE
10 kHz: < -88 dBc/Hz
100 kHz: < -95 dBc/Hz
1 MHz: < -113 dBc/Hz
Filter Bandwidth 1 Hz ~ 1 MHz in 1-3-10 sequence
200 Hz, 9 kHz, 120 kHz, 1MHz
Accuracy ± 8%, RBW = 1MHz ; ± 5%, RBW < 1MHz
Shape Factor <4.5 : 1
Filter Bandwidth 1 Hz ~ 1 MHz in 1-3-10 sequence
Tracking generator
Frequency Range 100 kHz ~ 3.25 GHz
Output Power -50 dBm ~ 0 dBm in 0.5 dB steps
Connector Type N-type female
Output VSWR < 1.6 : 1
FREQUENCY
ORDERING INFORMATION
GSP-9300B 3 GHz Spectrum Analyzer
EMC Pretest Solution :
GKT-008 EMI Near Field Probe Set
GLN-5040A Line Impedance Stabilization Network
GIT-5060 Isolation transformer
GPL-5010 Transient Limiter
ACCESSORIES :
Power Cord, Certificate of Calibration, CD-ROM (with Quick Start Guide, User Manual,
Programming Manual, SpectrumShot Software, SpectrumShot Guide & IVI Driver)
