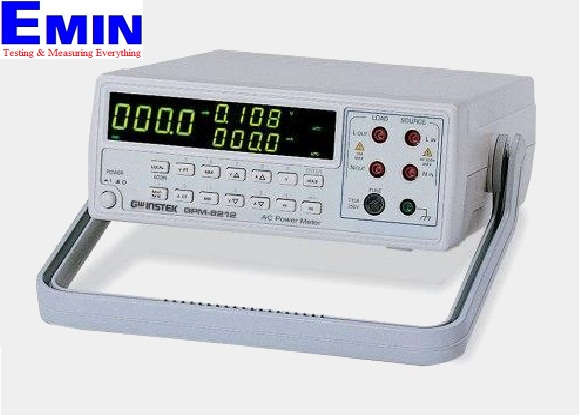

Gwinstek GPM-8212 A.C. POWER METER (True RMS, 640V, 20.48A)
ຜູ້ຜະລິດGW INSTEK(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)
ModelGPM-8212
ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ
| VOLTAGE | |
| Range | 5V, 10V, 20V, 40V, 80V, 160V, 320V, 640V total 8 ranges by auto-range or manual |
| Measurement Type | True rms |
| Input Resistance | >1MΩ |
| Maximum Input Voltage | 1000V (peak), 700V (rms) |
| PT Ratio Setting | 1 ~ 9999 |
| Accuracy(at 23°C+5°C) (Sinewave) | + 0.1% of reading + 0.1% of range |
| CURRENT | |
| Range | 160mA, 320mA, 640mA, 1.280A, 2.560A, 5.120A, 10.24A, 20.48A total 8 ranges by auto-range or manual |
| Measurement Type | True rms |
| Input Resistance | 0.01Ω |
| Maximum Input Current | 30A (peak), 20A (rms) |
| CT Ratio Setting | 1 ~ 9999 |
| Accuracy(at 23°C+5°C) (Sinewave) | + 0.1% of reading + 0.1% of range |
| WATT | |
| Meausrement Range | 0.32mW ~13.10kW |
| Meausrement Type | True rms |
| Accuracy(at 23°C+5°C) (Sinewave) | + 0.2% of reading + 0.2% of range |
| POWER FACTOR | |
| Range | 0.001 ~ 1.000 |
| Computation | W / (V x A) = Power Factor (PF) |
| Accuracy(at 23°C+5°C) (Sinewave) | + 0.2% of reading + 0.2% of range |
| FREQUENCY | |
| Meausrement Range | 40Hz ~ 400Hz |
| Accuracy(at 23°C+5°C) | + 0.2% of reading +2 digits |
| GENRAL | |
| Display | 4 digits 0.56" LED ang 2 sets of 4 digits 0.4" LED |
| Minimum Input | 2% of range |
| Response Time | 2 cycle / Sec |
| Overload Indicating | " O.L " |
| POWER SOURCE | |
| AC 100 ~ 230V, 50/60Hz | |
| DIMENSIONS&WEIGHT | |
| 251(W) × 91(H) × 291(D) mm Approx 1.6 kg | |
