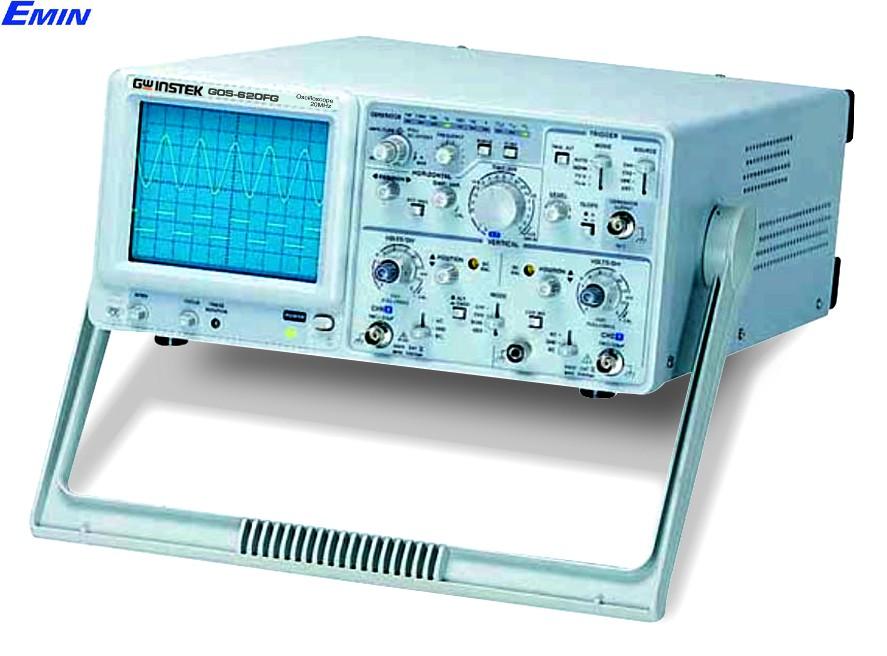

CRT | |
| Type | 6-inch rectangular type with internal graticule 8 x 10 div (1div=1cm) |
| Accelerating Potential | 2kV |
| Z-Axis Input | Sensitivity: Above 5Vp-p Max. input voltage: 30V (DC + AC peak) Bandwidth: DC ~ 2MHz |
| Polarity | Positive-going input decrease |
| Focus Control | Auto focus |
FUNCTION GENERATOR | |
| Frequency Range | 0.1Hz ~ 1MHz (7 range) |
| Waveform | Sine Wave, Square Wave, Triangle Wave |
| Frequency Variable Range | 10:1 or more |
| Output Impedance | 50Ω±10% |
| Voltage | Over 14Vpp(open circuit) continuous conversion DC offset possible over ±6V when open |
| Sinewave Distortion | 2% Max. (10Hz ~ 100kHz) |
| Squarewave Unsymmetry | ±3% or less (in 1 kHz maximum) |
| Squarewave Rise/Fall Time | 50Ω output: 120ns or less |
VERTICAL SYSTEM | |
| Sensitivity | 5mV ~ 5V/div ±3%, 1mV ~ 1V/div ±5% (using x5MAG) |
| Bandwidth | DC to 20MHz (x 5MAG: DC to 7MHz) |
| Rise Time | Approx. 17.5ns (x 5MAG: Approx. 50ns) |
| Max. Input | 300V (DC+ACpeak) at 1kHz |
| Input Coupling | AC, DC, GND |
| Input Impedance | Approx. 1MΩ // 25pF |
| Vertical Mode | CH1,CH2,DUAL(ALT,CHOP),ADD,CH2 INV |
HORIZONTAL SYSTEM | |
| Sweep Time | 0.2μs ~ 0.5s/div ±3% (±5% at x10 MAG) |
| Max. Sweep Rate | 100ns/div (20ns and 50ns/div are uncalibrated) |
TRIGGER | |
| Trigger Mode | AUTO, NORM, TV-V, TV-H |
| Trigger Source | CH1, CH2, ALT, LINE, EXT |
| Trigger Slope | "+" or "-" |
X-Y OPERATION | |
| Sensitivity | 5mV ~ 5V/div ±4% |
| X-axis Bandwidth | DC ~ 500kHz |
| Phase Error | 3° or less from DC ~ 50kHz |
OUTPUT SIGNAL | |
| Ch1 Signal Output | Voltage: approx. 20mV/div into 50Ω |
| Calibrator Output | 1kHz Square wave, 2Vpp±2% |
| POWER SOURCE | |
| AC 115/ 230V ±15%, 50Hz /60Hz | |
| DIMENSIONS & WEIGHT | |
| 310(W) x 150(H) x 455(D)mm; Approx. 8.5kg | |
Warranty: 12months
Manufacturer:Gwinstek- Taiwan
Origin: China
|
